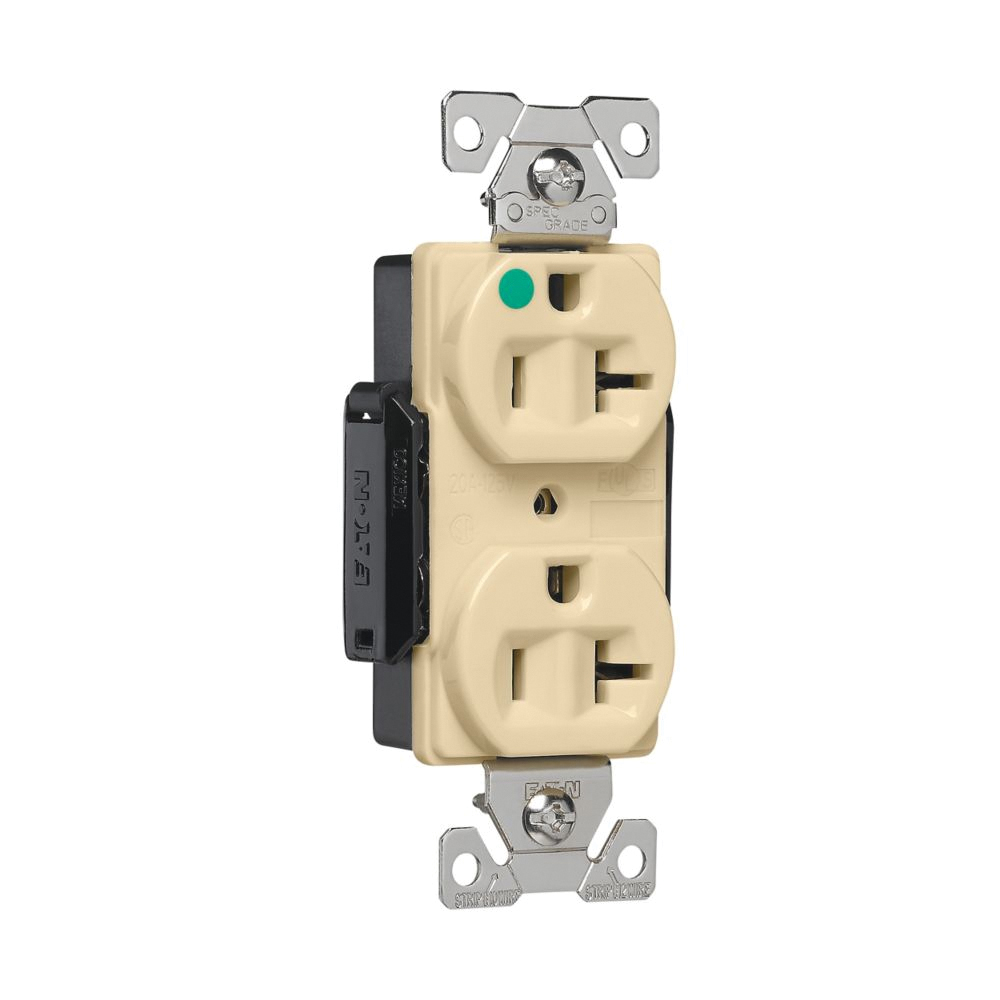

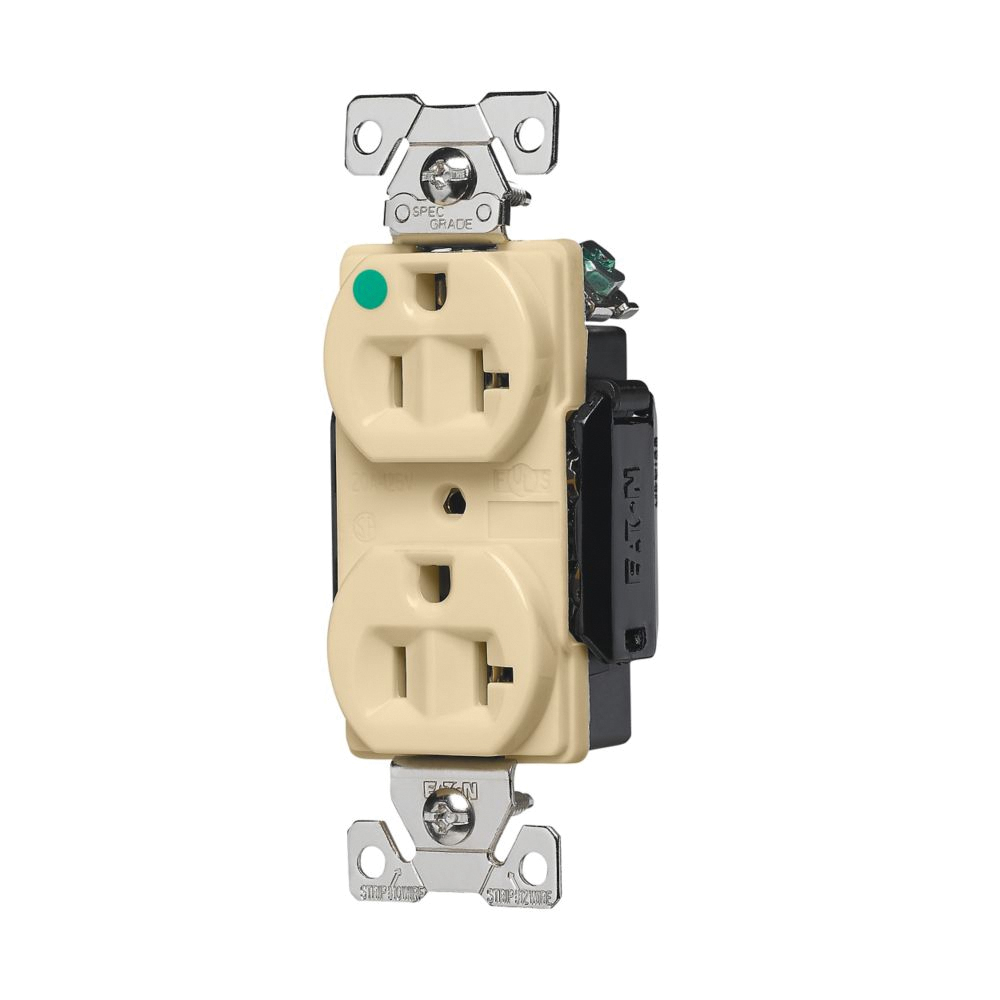

AH8300V Duplex Receptacle, Brass, Ivory, 2-Pole, 20 A, 125 V, Back, Side Wiring, NEMA: 5-20R

Name: AH8300V Duplex Receptacle, Brass, Ivory, 2-Pole, 20 A, 125 V, Back, Side Wiring, NEMA: 5-20R
Brand: Eaton Wiring Devices
SKU: 0678896-052303-18

Sku: 0678896-052303-18

$14.30

87 Available at SHIP TO STORE

Estimated Arrival On: 07/12/2026

Hospital specification-grade straight blade receptacles - premium back wire & side wire. Arrow Hart's feature rich line-of hospital-grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and Federal specification WC-596 to provide a consistent means of connectivity where downtime can be critical.

Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
Exclusive five-leaf solid brass line contacts ensure smooth plug blade insertion and long term retention
Rigid, glass reinforced nylon base lends ultimate strength and great high heat resistance in contact carrier
Solid brass mounting strap with non-riveted, integral one-piece grounding system for highest durability
High-impact and chemical-resistant nylon face
Tapered back wiring lead in slots assist in gathering stranded wires for faster, more secure connections
All terminal and mounting screws are plated, triple combination (Slot/Phillips/Robertson) head for great corrosion resistance and maximum flexibility
Long, broad mounting strap helps reach large panel cutouts for code compliance
Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
