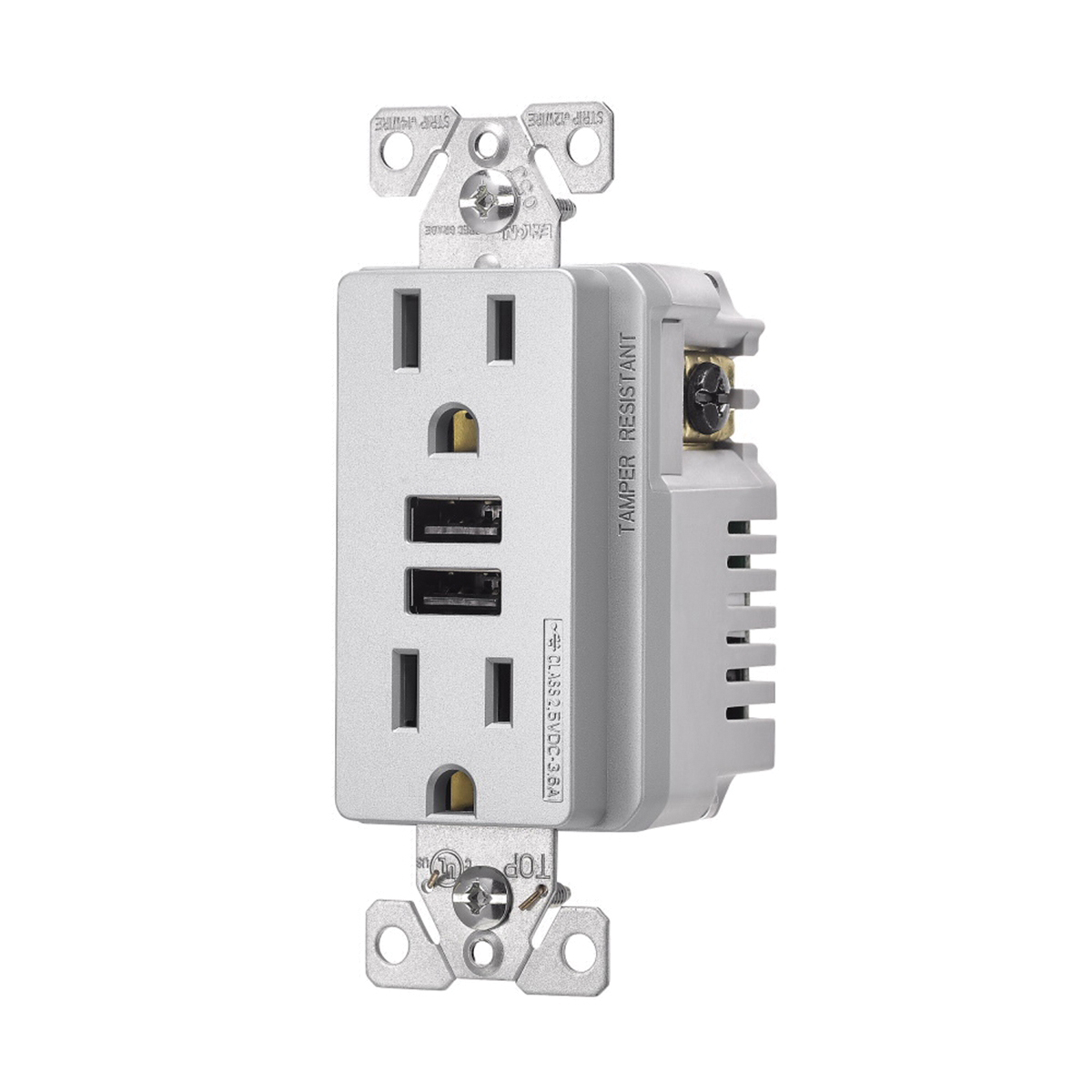

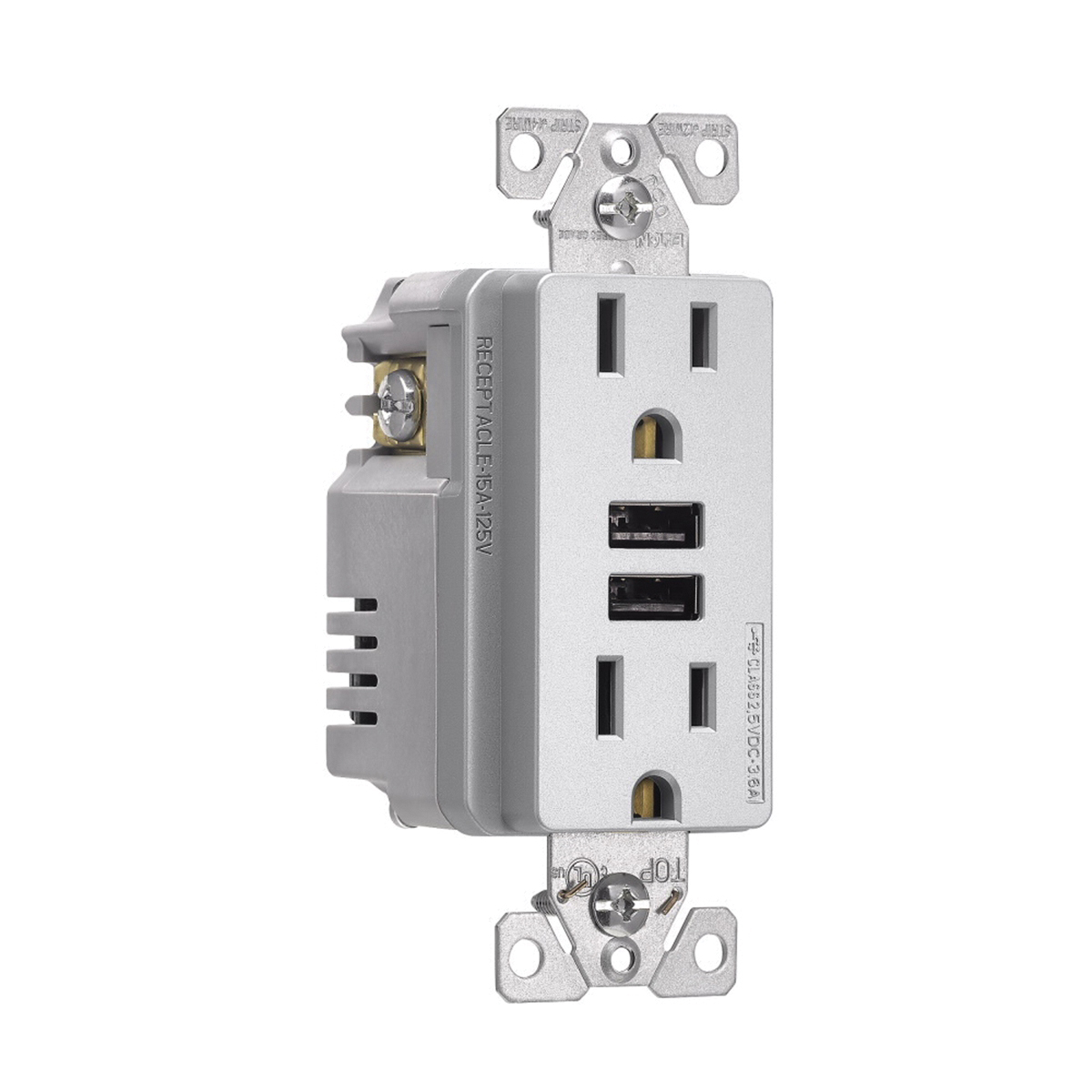

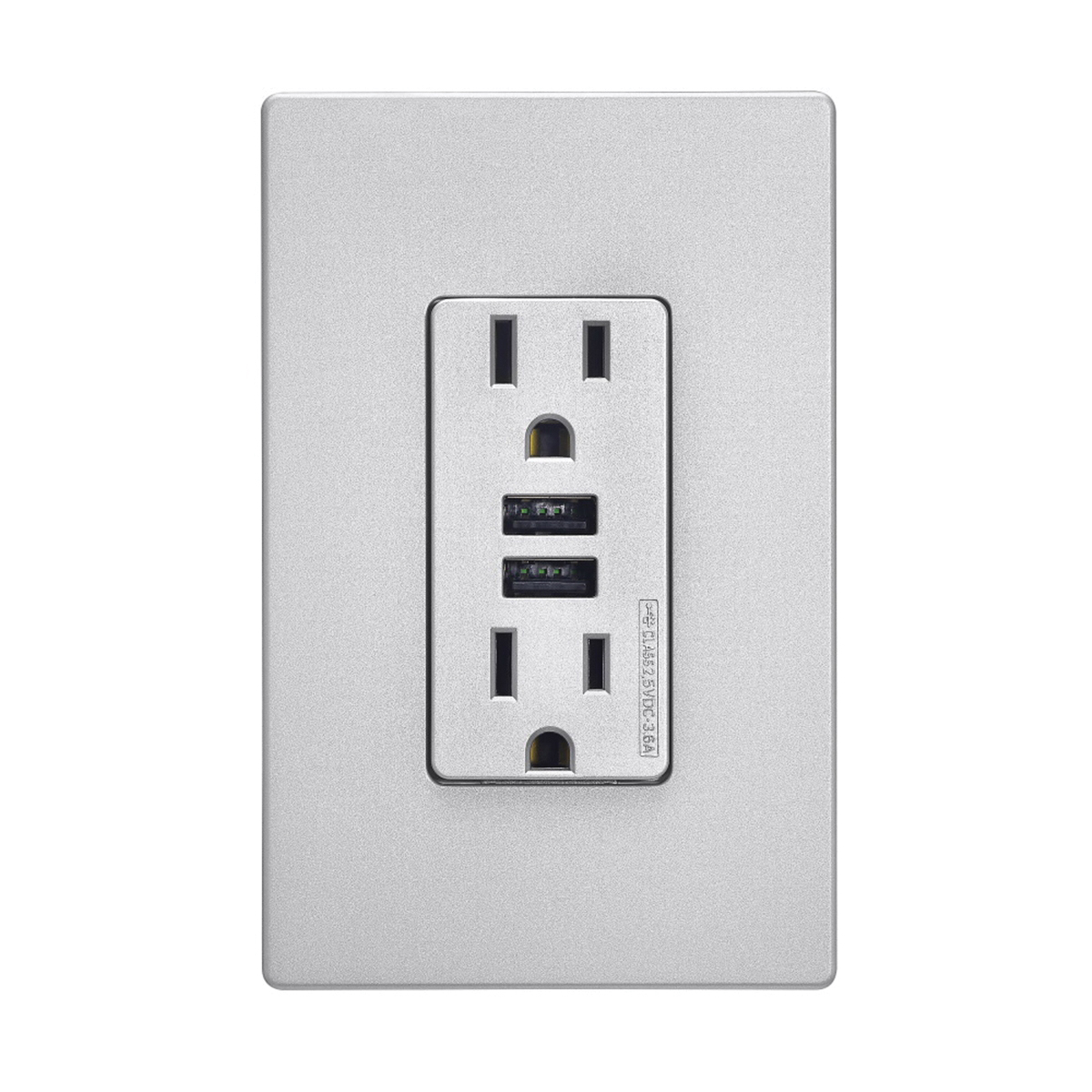

TR7765SG-KB-L Series USB Combination Receptacle, Type A, 2-Pole, 15 A at 125 VAC, 3.6 A at 5 VDC, NEMA 5-15R, Silver Granite

Name: TR7765SG-KB-L Series USB Combination Receptacle, Type A, 2-Pole, 15 A at 125 VAC, 3.6 A at 5 VDC, NEMA 5-15R, Silver Granite
Brand: Eaton
SKU: 1452937-052303-18

Sku: 1452937-052303-18

$37.27

16 Available at SHIP TO STORE

Estimated Arrival On: 03/27/2026

Outlets with USB Ports Uncommon Colors:Eaton Silver Granite Type A 15 Amp

Eaton USB Combination Receptacle, 125 VAC, 5 VDC, 15 A at 125 VAC, 3.6 A at 5 VDC, Frequency Rating: 140 kHz, Number of Poles: 2, Number of Wires: 3, Number of USB Ports: 2, Wiring Type: Screw Terminals, Side and Back, Wire Size: 14 to 12 AWG, NEMA Configuration: NEMA 5-15R, Operating Temperature: -4 to 140 deg F, Thermoplastic, Silver Granite, Dimensions: 4.19 in H x 1.3 in W x 1.4 in D

Dual USB ports charges most compatible USB electronic devices
Tamper-resistant shutters provide compliance with 2014 NEC Article 406.12 that states that all 15 A and 20 A, 125 V receptacles installed in dwelling units must be tamper-resistant
Replaces a standard duplex receptacle
Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
Steel mounting strap is zinc-plated for added corrosion resistance
Convenient patented built-in wire strippers speed installation
