Southwire

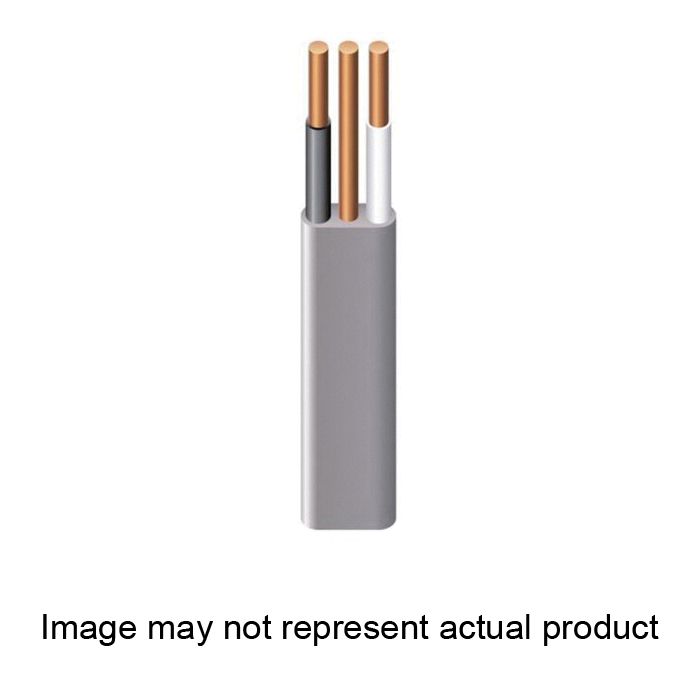

138-1402AR Building Wire, UF-B, 14 AWG Wire, 2 -Conductor, 25 ft L, Copper Conductor, Plastic Insulation

Sku: 18011186
CALL FOR PRICE
0 Available at San Marcos
Building Wire:Southwire 138-1402AR 14 AWG

Southwire Building Wire, UF-WG, 14 AWG Wire, 25 ft Length, 2 Conductors, Strands per Conductor: 1, Copper Conductor, Plastic Conductor Insulation, Nylon Sheath, Gray Sheath, 600 V, 15 A, 90 deg C Operating

  • Southwire Type UF-B cable is manufactured as a 2 or 3 conductor cable, with or without a ground wire
  • Copper conductors are annealed (soft) copper, solid or compressed stranded
  • Phase conductors are PVC insulated, nylon jacketed, color coded for identification purposes
  • Jacketed with sunlight, moisture and fungus-resistant gray PVC
  • Underground feeder and branch circuit cable

Type
UF-B
Wire Size
14
Length
25
Number of Conductors
2
Strands per Conductor
1
Conductor Material
Copper
Conductor Insulation
Plastic
Stranded/Solid
Solid
Sheath Material
Nylon
Sheath Color
Gray
Voltage Rating
600
Current Rating
15
Operating Temperature
90
