Cutler-Hammer

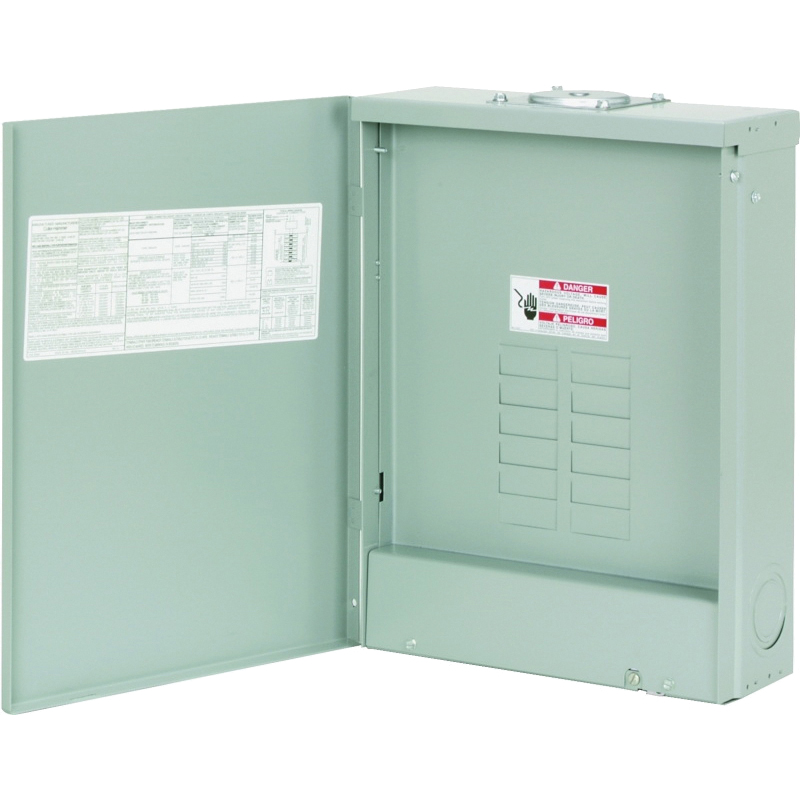

BR BR1224L200R Load Center, 200 A, 12 -Space, 24 -Circuit, Main Lug, NEMA 3R Enclosure, Light Gray

Sku: 18027041
$129.99
4 Available at San Marcos
Location: Aisle 26
Main Lug Load Center Options:CutH BR1224L200R 200A 12Sp 24Cir

Load Centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

  • Larger knockout provides easier installation and time savings
  • Top or bottom feed, straight-in wiring saves labor and material, one panel for either top or bottom applications
  • 2/0 lug easily removable and can be installed in any location on the neutral bar
  • Type BR AFCI breakers, compact design for easier wiring and improved wireway access, optional LED indicates one of six trip codes for circuit diagnostics, provides a clean gutter space
  • Excellent conductivity and corrosion resistance, copper bus options available
  • Drywall marking on enclosure - indicates proper mounting depth for flush applications
  • Tangential center knockout, easier installation for conduit applications

Voltage Rating
120/240
Current Rating
200
Number of Phases
1
Number of Spaces
12
Number of Circuits
24
Breaker/Load Center Type
Main Lug
Interrupt Rating
25
Cable Size
#1
Wiring Configuration
3-Wire
Bus Bar Material
Aluminum
Enclosure Type
NEMA 3R
Mounting Type
Plug
Color
Light Gray
