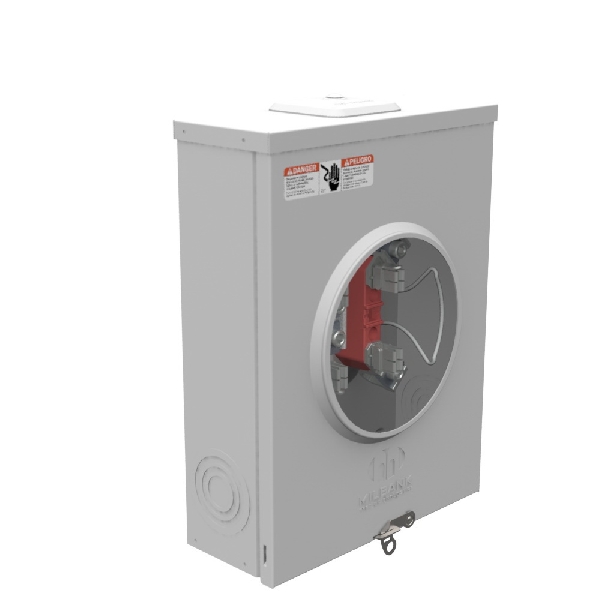

UAP7040-XL-TG-HSP Meter Socket, 1-Phase, 200 A, 600 VAC, 4-Jaw, Surface, Overhead, Underground Cable Entry

Name: UAP7040-XL-TG-HSP Meter Socket, 1-Phase, 200 A, 600 VAC, 4-Jaw, Surface, Overhead, Underground Cable Entry
Brand: Milbank
SKU: 18035040

Sku: 18035040

CALL FOR PRICE

0 Available at San Marcos

Meter Socket Options:Milbank UAP7040-XL-TG-HSP 200A 4Jaw

Milbank Meter Socket, 600 VAC, 200 A, 60 Hz Frequency, 1 ph, 4 Jaws, Continuous Feed, 6 AWG to 350 kcmil Wire, Overhead, Underground Cable Entry, 1 Positions, NEMA 3R Enclosure, Ringless Cover, Surface Mounting, Aluminum, Powder-Coated, Dimensions: 4.125 in L x 11 in W x 14.563 in H

It is rated at 600 VAC, 200 A with a triplex ground, and is NEMA 3R rated for outdoor use.
The Milbank single-phase meter base offers cable entry underground and overhead.
Milbank does much more than single position meter sockets, however, there’s a reason we’re known for the meter sockets we create.

Type

Meter Socket

Voltage Rating

600

Current Rating

200

Frequency Rating

Number of Phases

Number of Jaws

Feed Type

Continuous

Wire Size
