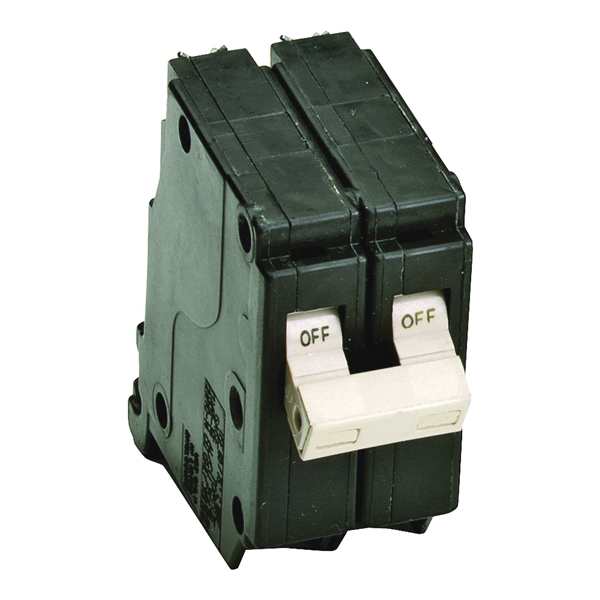

CHF230 Circuit Breaker with Flag, Mini, Type CH, 30 Amp, 2 -Pole, 120/240 V, Instantaneous Trip
Sku: 18039809
$32.99
2 Available at
San Marcos
Location:
Aisle 26
Eaton Circuit Breaker Options:CHF230 30 Amp, 2 Pole
Eaton has enhanced its premium Type CH residential circuit breakers, making the ideal even better. In addition to the industry exclusive "Trip to OFF" and simple 1-step reset feature, Eaton has added a trip flag to visibly indicate breaker status. Along with Tri-Drive screws and new markings that highlight ratings and the Eaton brand. These additional features truly make this product a enhanced offering for residential, light commercial and OEM applications.
- Easy to install
- Easy to reset
- Ultimate performance
- Circuit breaker is clearly marked identifying amperage, ratings and Eaton brand
- Trip flag visibly indicates breaker status
- Exclusive Trip to OFF and simple one-step reset breaker feature eliminates the need to turn the breaker off before turning to the ON position
- Tri Drive screw accepts flat, Robertson or Phillips drivers, making it easier for electricians to install
- Space saving 3/4 in design accommodates more breakers per panel
Type
Mini, Type CH
Voltage Rating
120/240
Current Rating
30
Operating Frequency
50/60
Number of Phases
1
Number of Poles
2
Interrupt Rating
10
Actuator Type
Magnetic, Thermal
Trip Type
Instantaneous
Wire Size
14 to 10, 14 to 8
Number of Spaces
2
Mounting Type
Plug
Dimensions
3 in L x 3/4 in W x 3 in H
Operating Temperature
60 to 75
Suitable for
Type CH Load Centers
