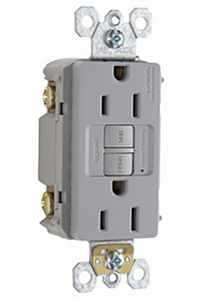

radiant 1597GRYCCD12 GFCI Duplex Receptacle, 125 V, 15 A, NEMA: NEMA 5-15R, Gray
Sku: 18110013
$16.99
3 Available at
San Marcos
Location:
Aisle 25
GFCI Outlets Uncommon Colors :P&S Rdnt Gray 15 Amp
The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screw less wall plates that complement today's homes. The self-test GFCI conducts an automatic test every 3 s, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ protection feature if critical components are damaged and protection is lost, power to the receptacle is disconnected.
- New external backwire pressure plates
- New posted terminal screws for faster installation
- Conducts an automatic test every 3 s ensuring it's always ready to protect and if the device fails the test, the trip indicator light (red LED) flashes to signal that the GFCI should be replaced
- Equipped with proven SafeLock protection feature, if critical components are damaged and protection is lost, power to the receptacle is disconnected
- Redesigned side wire cavity improves speed of side wire installation
- Feed-thru wiring configuration allows GFCI to protect downstream receptacles
- Prevents line-load reversal miswire, no power to the face or downstream receptacles if wired incorrectly
Type
Self-Test, Tamper-Resistant
Voltage Rating
125
Current Rating
15
Short Circuit Current Rating
10
Number of Wires
3
Wire Size
14
NEMA Rating
NEMA 5-15R
Material
Nylon/Plastic
Color
Gray
Mounting Type
Wall
Dimensions
1.62 in W x 1.13 in D x 4.19 in H
