Radiant Series RHL153PWCC4 Decorator Dimmer, 120 VAC, 150 W, LED Lamp, White
Sku: 18120014
$44.99
4 Available at
San Marcos
Location:
Aisle 25
Dimmer Options:P&S RHL153PWCC4 120VAC 60Hz
Upgrade your space with Legrand's newest LED dimmer switch in the radiant® Collection. Designed specifically for flicker-free control of today's dimmable LED light bulbs and fixtures, this dimmer features advanced circuitry to offer a great lighting control experience that works right out of the box. The dimmer switch boasts a variety of user adjustments to adapt to a wide range of dimmable LED lights, eliminating unpleasant flickering, pop-ons and more. As a part of the radiant® Collection, the advanced dimmer for LED lights also features clean lines and smooth control for a sophisticated touch. Pair with a screwless radiant® wall plate and other designer switches and outlets from the collection for a cohesive design throughout the home. Made exclusively for use with screwless wall plates from the radiant® Collection, sold separately.
- Specifically designed for use with dimmable LED bulbs and fixtures up to 150 W at 120 VAC, optimized to workout of the box and provide flicker-free control of LEDs
- Advanced dimming technology maximizes LED compatibility to provide a full range of control while helping to eliminate most common LED dimming issues

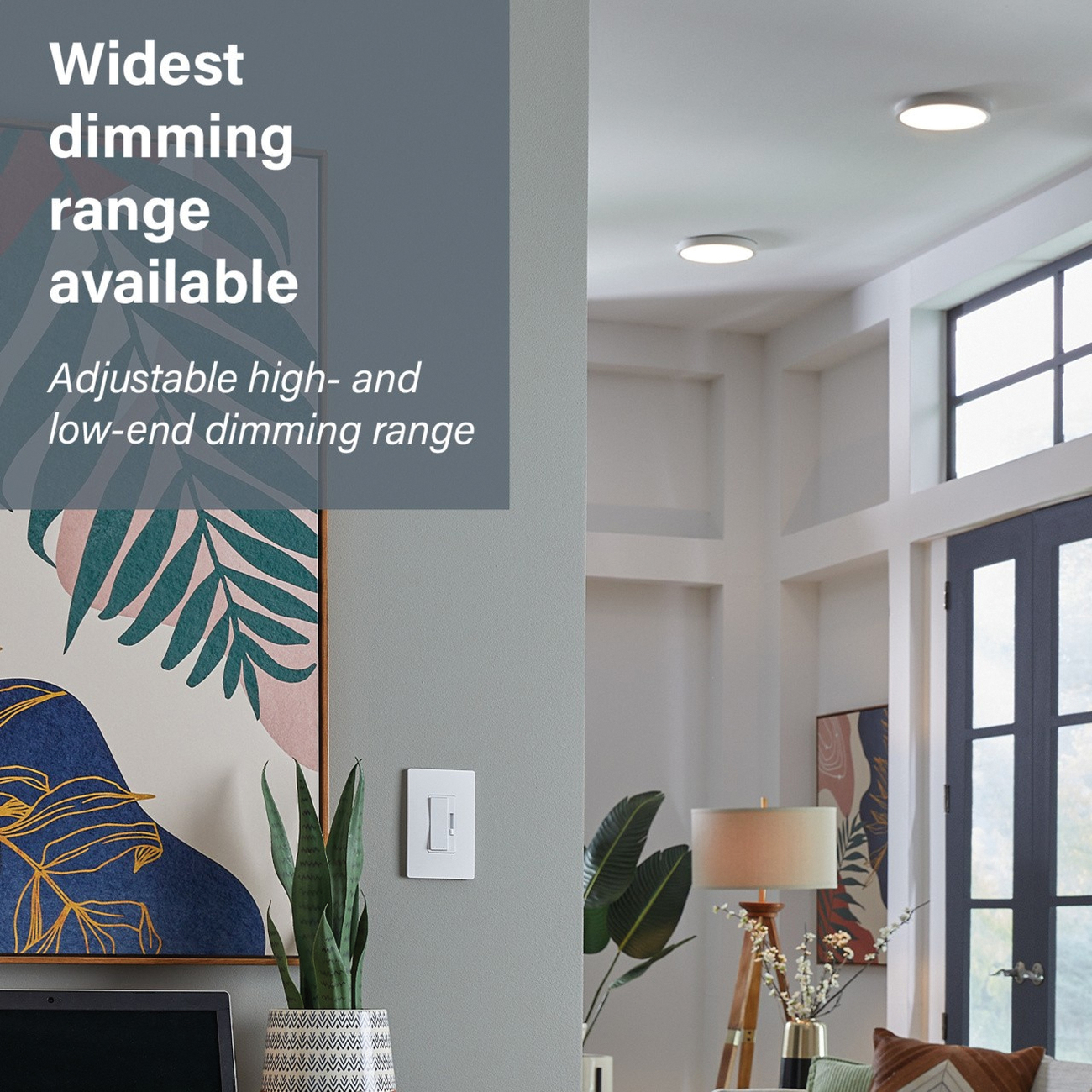

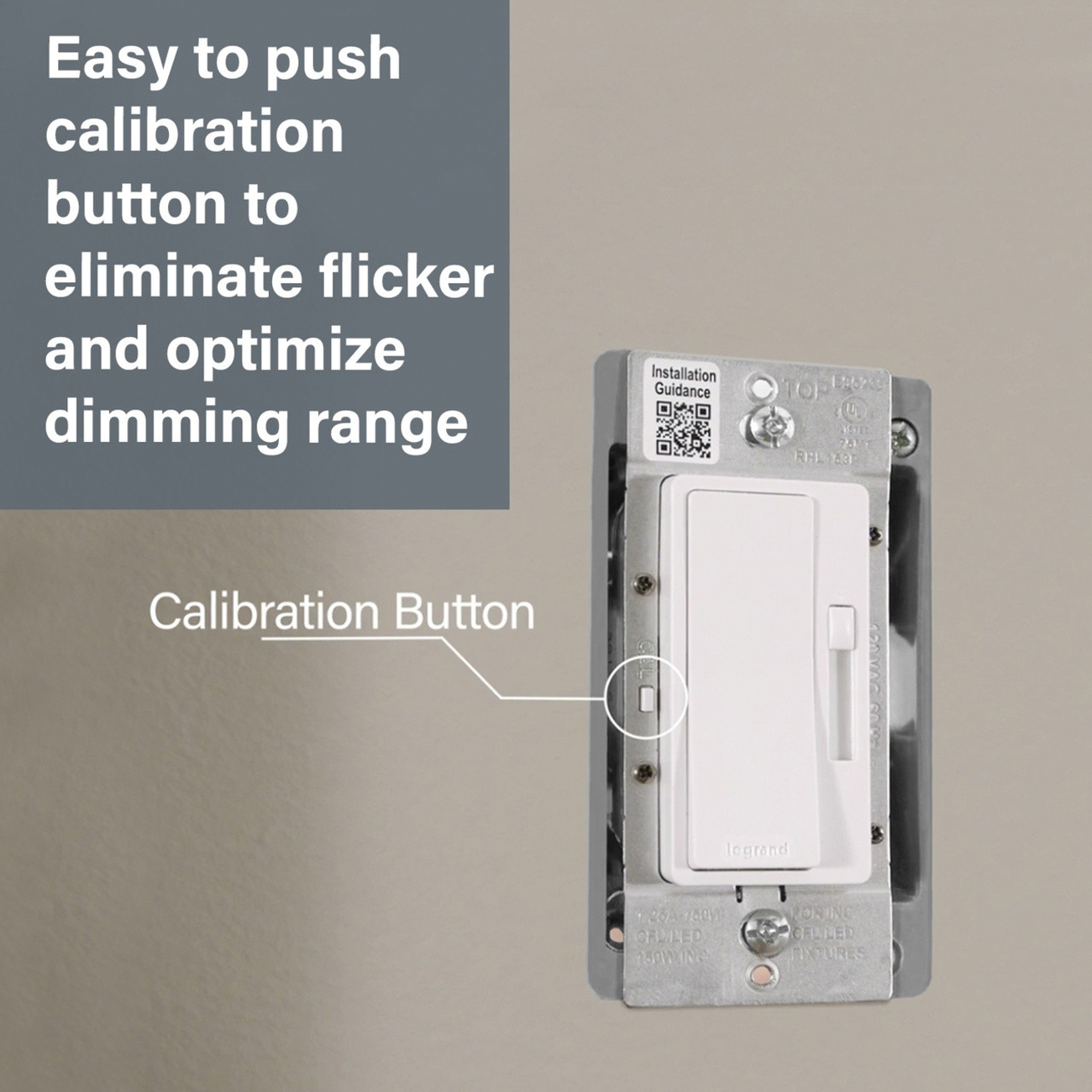

- Simple high-and-low end dimming limit adjustability with easy-to-push calibration button to meet all lighting preferences and eliminate LED flickering
- Optional LED burst Mode setting can be activated as needed to help eliminate or reduce LED turn on delays and pop-ons
- Replaces any basic single pole or 3-way switch or dimmer in less than 15 min, no neutral wire required, works in both new construction and retrofit applications
- Back-wire screw and pressure plate terminations for easy and reliable wiring with ground wire lead and wire nut provided
- QR code provided on front face of device to provide easy access to installation guides and videos
- Low profile paddle switch offers smoother on/off preset control, while separate, ergonomic slider allows for precise adjustment of light levels
- Constant memory feature returns light levels and user adjustments to return to previous settings following a power failure or outage

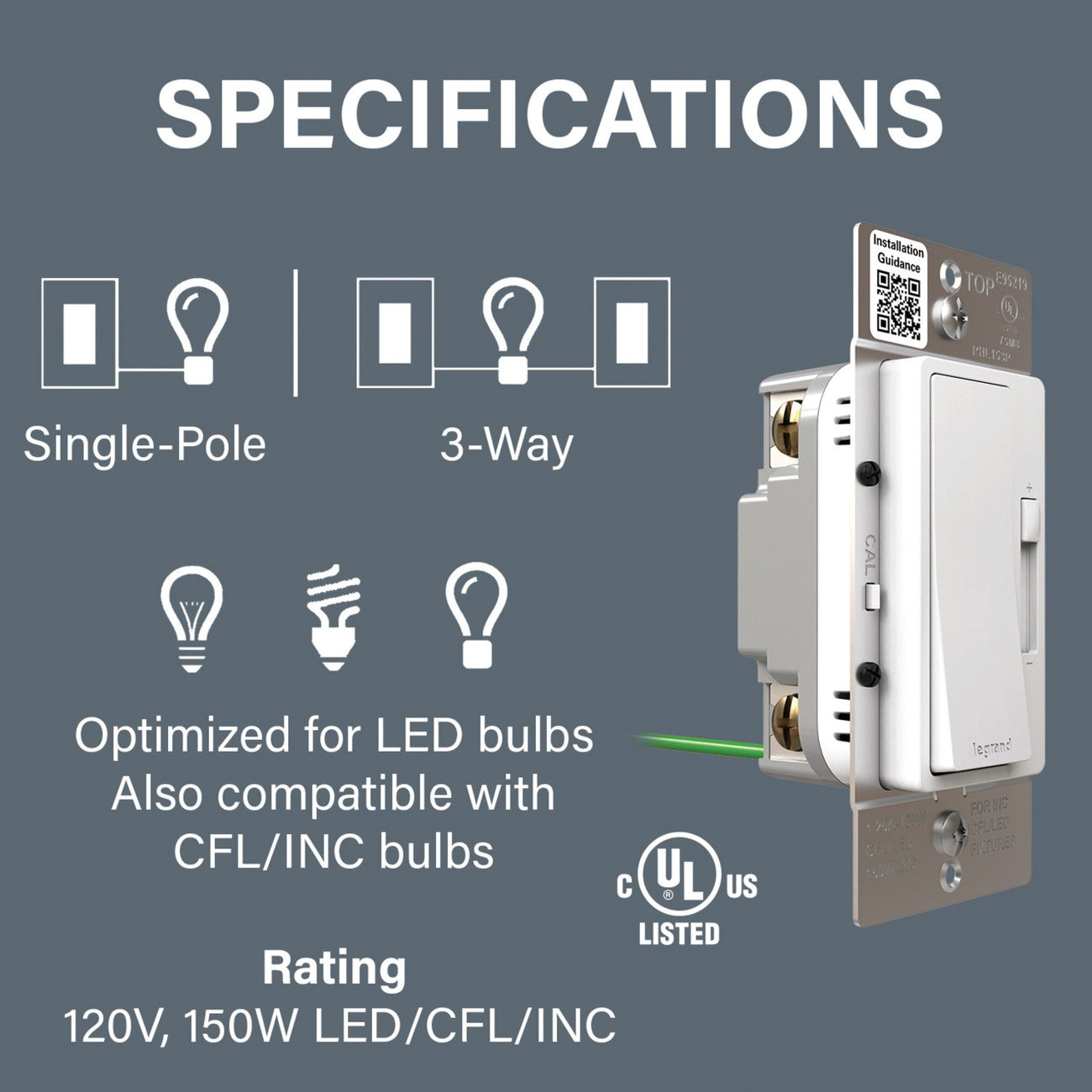

Voltage Rating
120
Frequency Rating
60
Wattage Rating
150
Number of Poles
1
Lamp Type
LED
Start Type
Switch
Control Type
Switch
Enclosure Type
NEMA SSL-7A
Mounting Type
Wall
Terminal Type
#12 to #14 AWG Solid and Stranded
Temperature Rating
-40 to 40
Material
Polycarbonate
Color
White
Dimensions
4.19 in H x 1.74 in W x 1.46 in D
Additional Information
3-Way
