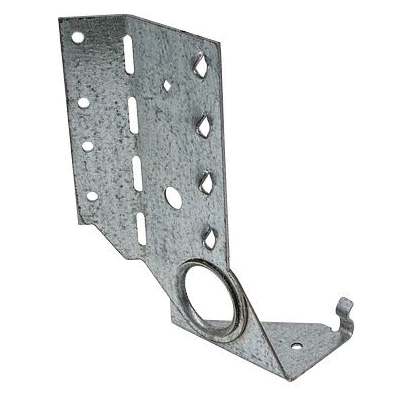

LSSJ26RZ Right Side Field Adjustable Jack Hanger, 4-3/8 in H, 1-9/16 in W, Face
Sku: 28011004
CALL FOR PRICE
0 Available at
San Marcos
ZMAX Joist Hangers:Simpson LSSJ26RZ 4-3/8inx1-9/16in
The innovative LSSJ is ideal for connecting jack rafters to hip members. Featuring a one-sided connection point for ease of installation and a versatile, hinged seat, the LSSJ is easily field adjustable to all typical rafter slopes ranging from 0:12 to 12:12. The LSSJ's header flange allows for easy skew adjustment, from 0 to 45 deg. It ships pre-bent at 45 deg so is ready to place for most typical applications.
- Hanger installs from one side with all fastener holes easily accessible
- Can be installed as a retrofit
- Seat grip makes setting the hanger quick and easy
- Accommodates roof pitches from 0:12 to 12:12
- Swivel seat adjusts easily and provides more support to joist, allowing for a higher load than fasteners alone
Skew Angle
0 to 45
Fastener Type
Nails
Fastener Size
0.148 x 1-1/2
Material
Steel
Finish
Galvanized
Mounting Type
Face
Height
4-3/8
Width
1-9/16
Type
Right Side Field Adjustable Jack Hanger
