N100-358 D-Shackle, 5/8 in, 5000 lb Working Load, 316 Grade, Stainless Steel, 1-31/32 in L Inside
Sku: 28280678
$23.99
4 Available at
San Marcos
Location:
Aisle 10
Anchor Shackle Options:5000lb Load, 5/8in, SS D Shack

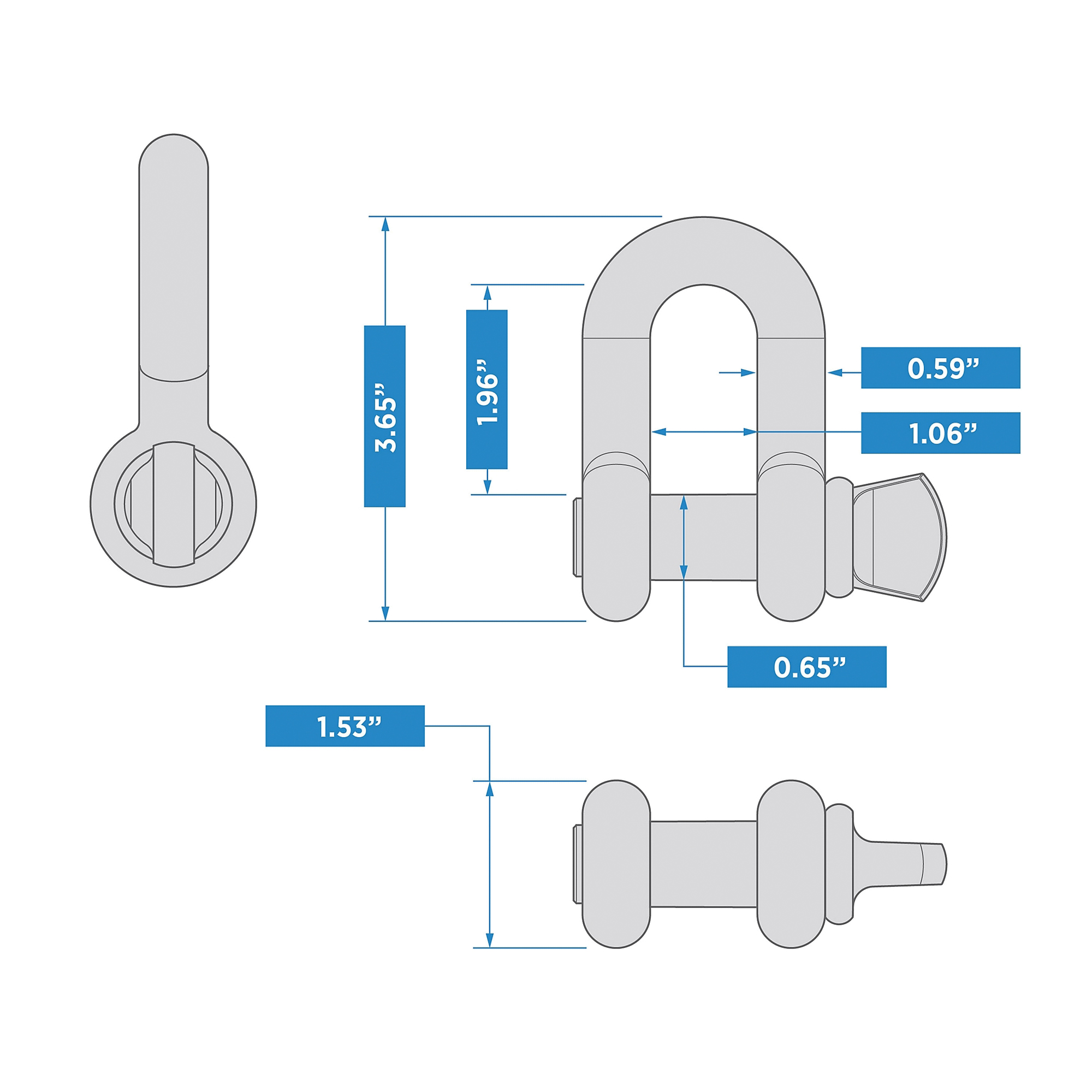

National Hardware D-Shackle, Working Load Limit: 5000 lb, Trade Size: 5/8 in, Inside Length: 1-31/32 in, Inside Width: 1-1/16 in, Pin Hole Diameter: 23/32 in, Width Between Eyes: 1-1/16 in, 316 Grade, Stainless Steel, 1-17/32 in W, 3-21/32 in H, Includes: Removable Screw Pin
- National Hardware's 5/8 in, stainless steel D-shackles shackles are used in a number of different rigging and load securement applications to connect different types of lifting slings, chain or rope to an object or to each other
- Marine-grade and manufactured from stainless steel for durability
- Easily installs with included removable screw pin
- A shackle is a U-shaped, load-bearing connecting device designed to be used with a removable pin
- Heavy-duty rating with 5000 lb safe working load, always follow safe working load limits included on packaging
Working Load Limit
5000
Grade
316
Trade Size
5/8
Inside Length
1-31/32
Inside Width
1-1/16
Width Between Eyes
1-1/16
Pin Type
Screw
Material
Stainless Steel
Includes
Removable Screw Pin
Width
1-17/32
Height
3-21/32
Pin Hole Diameter
23/32
