Pro Series 783589 Deadbolt, 3 Grade, Brass, Satin Nickel, 2-3/8, 2-3/4 in Backset, KW Keyway
Sku: 28283974
CALL FOR PRICE
0 Available at
San Marcos

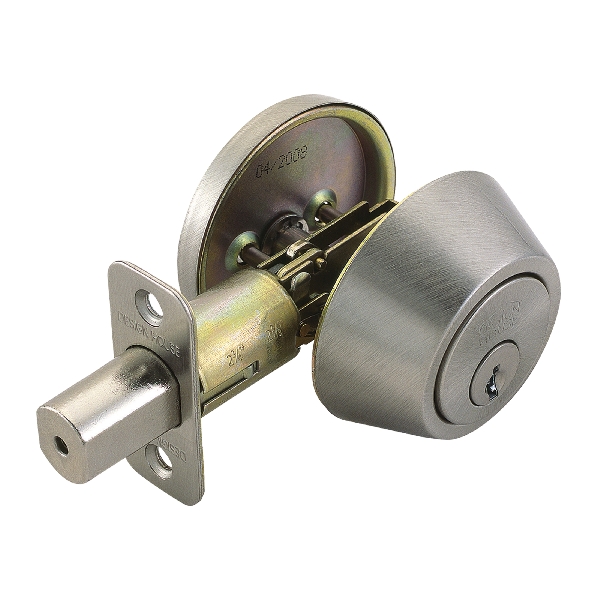

Satin Deadbolt Options:Design House 783589 Satin Nickel
Design House Pro Deadbolt, Security Grade: 3, Number of Cylinders: 1, Cylinder Type: 5-Pin, Keyway Type: KW, Strike Type: Radius Corner, Backset Type: Adjustable, Backset Size: 2-3/8, 2-3/4 in, Latch Type: 2-Way, Faceplate Size: 1 x 2-1/4 in, Throw Length: 1 in, Edge Bore Diameter: 1 in, Projection Size: 0.94 in, Door Thickness: 1-3/8 to 1-3/4 in, Interior Locking: Turnbutton, Door Handing: Reversible, Commercial/Residential: Residential, Brass, Satin Nickel, Dimensions: 4 in L x 3-5/8 in W x 2-1/2 in H, Includes: (2) Keys
- Designed for left or right hand doors
- Single cylinder deadbolt, keyed lock exterior, turn-button lock interior
Type
Deadbolt
Security Grade
3
Number of Cylinders
1
Cylinder Type
5-Pin
Keyway Type
KW
Strike Type
Radius Corner
Backset Type
Adjustable
Backset Size
2-3/8, 2-3/4
Latch Type
2-Way
Faceplate Size
1 x 2-1/4
Throw Length
1
Edge Bore Diameter
1
Projection Size
0.94
Door Thickness
1-3/8 to 1-3/4
Interior Locking
Turnbutton
Door Handing
Reversible
Commercial/Residential
Residential
Material
Brass
Finish
Satin Nickel
Dimensions
4 in L x 3-5/8 in W x 2-1/2 in H
Includes
(2) Keys
