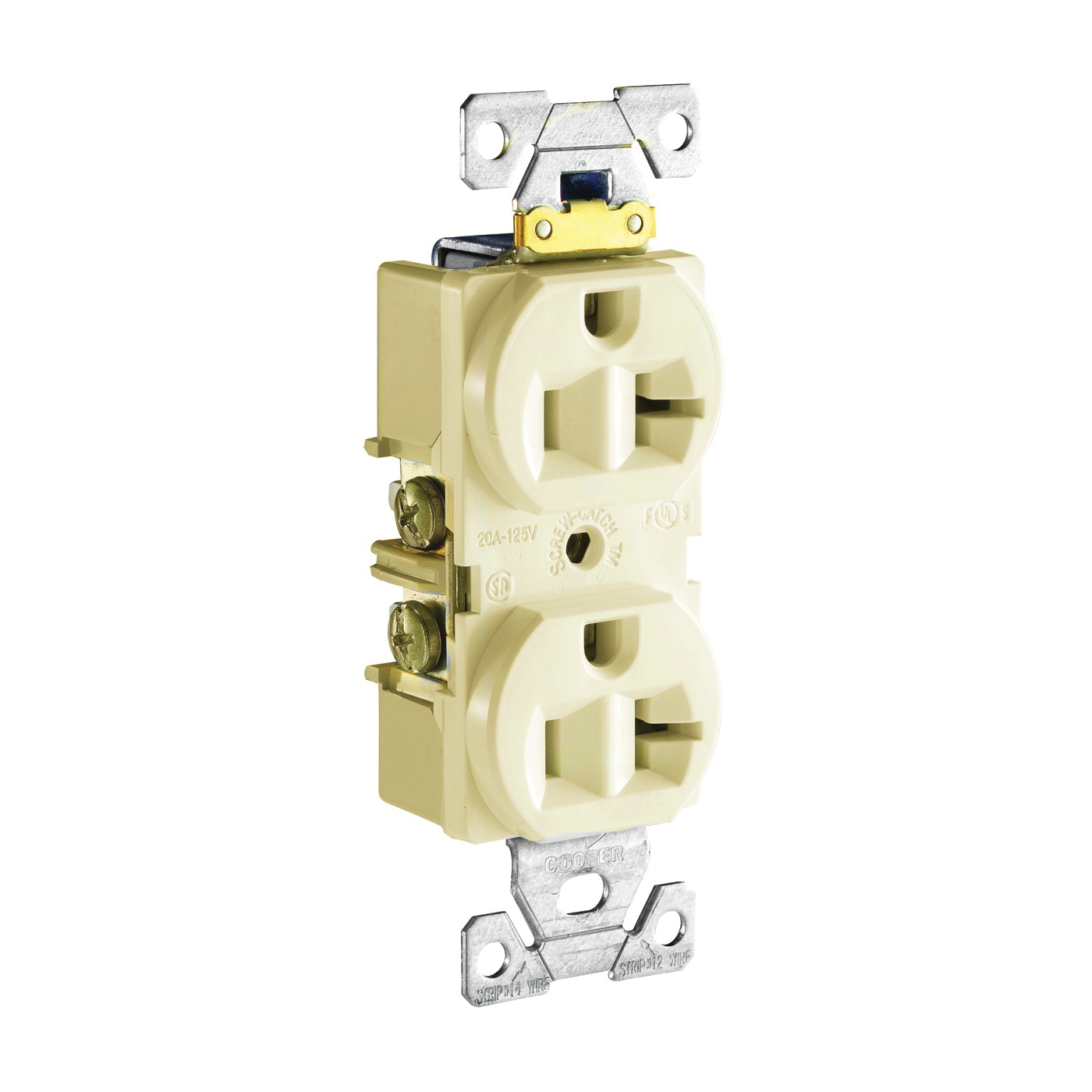

CR20V Duplex Receptacle, 2-Pole, 20 A, 125 V, Side Wiring, NEMA: 5-20R, Ivory
Sku: 3396173-052303-18
$3.89
222 Available at
SHIP TO STORE
Estimated Arrival On: 01/23/2026
Commercial specification-grade straight blade receptacles - 20 A-125 V, NEMA 5-20R. Engineered for safe, reliable performance, these UL 498 and Federal Specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.
- Sturdy, compact design meets the demands of commercial spec-grade performance
- Excellent plug blade retention provided by 0.032 in (0.81mm) triple wipe brass line contacts and 0.050 in (1.27mm) brass ground
- High-impact-and chemical-resistant nylon face
- 0.035 in galvanized steel, wraparound yoke mounting strap for great assembly security, extra length/width helps reach large panel cutouts for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
- Screw-catch feature on duplex devices speeds mounting of wallplates
- Tamper-resistant receptacle provide compliance with 2017 NEC Article 406.12 that states that all 15 A and 20 A
Voltage Rating
125
Current Rating
20
Frequency Rating
60
Number of Poles
2
Number of Wires
3
Wiring Type
Side
Wire Size
14 to 10
NEMA Configuration
5-20R
Operating Temperature
-20 to 60
Mounting Type
Wall
Material
PVC
Color
Ivory
Dimensions
4 in L x 1.24 in W x 0.79 in D
