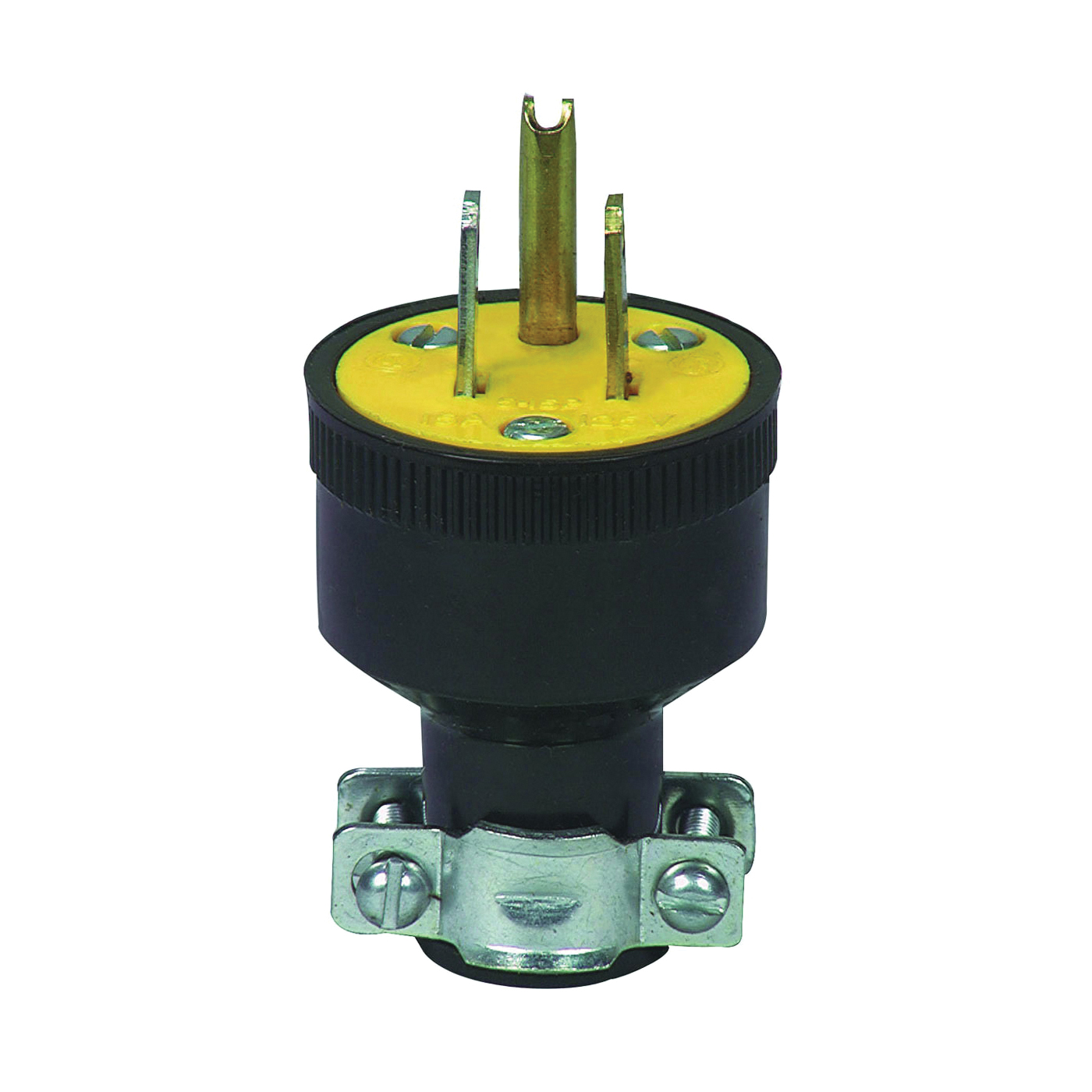

BP1709 Electrical Plug, 2 -Pole, 15 A, 125 V, Slot, NEMA: NEMA 5-15, Black
Sku: 4542700-052303-18
$8.09 / Card
88 Available at
SHIP TO STORE
Meets all UL 498 requirements. Solid brass straight plug blades. Combination slot/Phillips head mounting and terminal screws. Temperature rating of -20 to 60 deg C. 15 A, 125 V. 1/4 to 39/64 in cord diameter. UL listed, CSA Certified. NEMA 5-15P.
- Solid brass plug blades are firmly embedded in body
- Terminal screw clamps are designed to contain wire and prevent binding
- Terminal screws backed out ready for wiring
- Terminals in individual chambers to positively insulate conductors
- Thermoplastic rubber plugs and connectors maintain flexibility in extremely low temperatures
- Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
Type
Heavy-Duty, Straight Blade
Voltage Rating
125
Current Rating
15
Number of Poles
2
Number of Wires
3
Cable/Wire Size
1/4 to 39/64
Connection Type
Slot
Grounding Type
Grounded
Operating Temperature
-20 to 60
Material
Thermoplastic
Color
Black
Dimensions
2 in L x 1.54 in W
NEMA Configuration
NEMA 5-15
