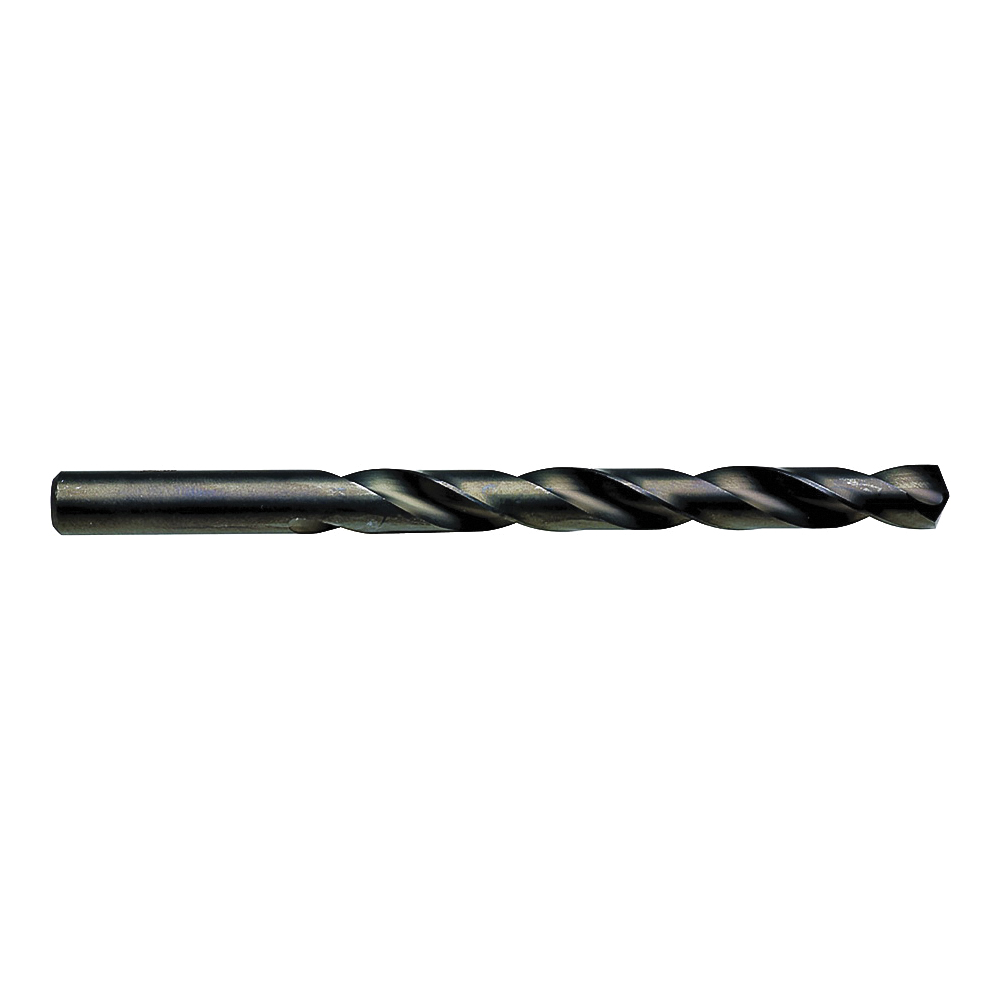

67522 Jobber Drill Bit, 11/32 in Dia, 4-3/4 in OAL, Spiral Flute, 1-Flute, 11/32 in Dia Shank, Cylinder Shank
Sku: 6104111-052303-32
$8.40 / Card
12 Available at
SHIP TO STORE
High-speed steel with black oxide treatment that reduces friction between bit and workpiece. Split point starts on contact in metal, wood and plastic; eliminates walking or skating when drilling into metal; 135 deg split point on all bits above 1/8 in ; jobber length.
- Bit is constructed of M-2 high-speed steel for the excellent combination of strength, heat resistance and wear resistance
- Black oxide coating resists corrosion
- 135 deg split point ensures a true start and eliminates bit walking
Diameter
11/32
Flute Type
Spiral
Number of Flutes
1
Flute Length
3-7/16
Shank Type
Cylinder
Shank Diameter
11/32
Shank Length
1-1/3
Point Type
Split
Point Angle
135
Grade
M2
Material
HSS
Finish
Black Oxide
Overall Length
4-3/4
Cutting Direction
Clockwise
Applicable Materials
Metal, Plastic, Wood
