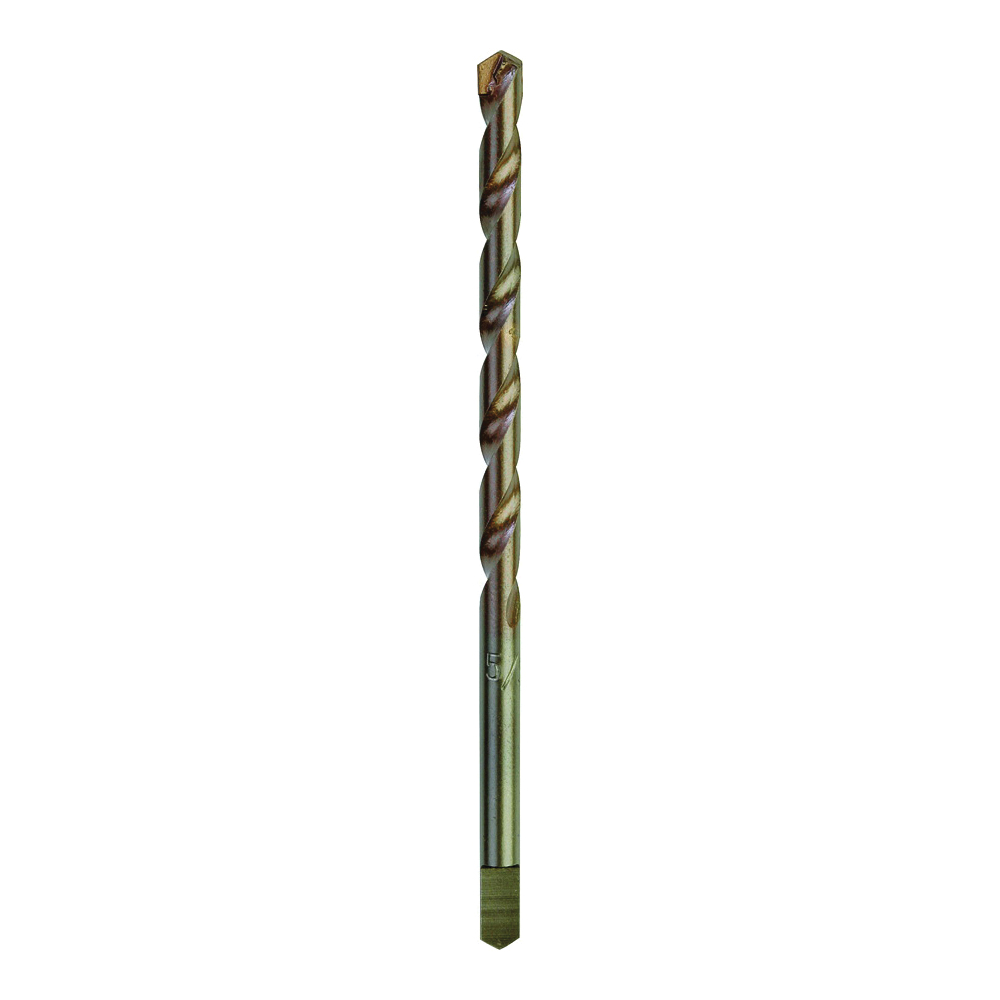

01021 Drill Bit, 3/16 in Dia, 5-1/2 in OAL, Parabolic Flute, 3/16 in Dia Shank, Straight Shank
Sku: 8223729-052303-32
$8.98
12 Available at
SHIP TO STORE
Made of chrome vanadium steel shank for enormous strength, for use with Tapcon fasteners. Special negative back grinding enables the tip to bore through applications such as masonry, ceramic tile, concrete, brick, fiberglass, plexiglas, cast metals, hardened steel, granite, marble, woods and plastic with a filing action rather than a cutting action. Requires no center punch, eliminates walking and can be re-sharpened. NOTE: not recommended for use on mild steel, e.g. aluminum, angle iron, copper, galvanized pipe, brass and stainless steel. Conforms to ANSI standards.
- Chrome vanadium steel shank for enormous strength and flexibility
- Outlasts regular carbide-tipped bits
- Requires no center punch and eliminates walking
- Resharpens on a high-quality silicon carbide grinding wheel
- Uses standard coolants such as turpentine, light oil, water
- Flat bottom parabolic flute for faster waste removal
- Special negative back grinding enables the tip to bore through materials with a filing action, not cutting
- The blend and high tech bonding of cobalt and tungsten carbide allows bit to withstand temperatures up to 2000 deg F
Diameter
3/16
Flute Type
Parabolic
Flute Length
3-1/4
Shank Type
Straight
Quick Change Shank
No
Shank Diameter
3/16
Cutting Edge Material
Carbide
Material
Chrome Vanadium Steel
Finish
Black Oxide
Overall Length
5-1/2
Applicable Materials
Cast Metal, Ceramic, Fiberglass, Glass, Granite, Hardened Steel, Hardwood, Marble, Masonry, Plexiglas, PVC, Softwood
Suitable for
Cordless and Corded Drills, Drill Presses
