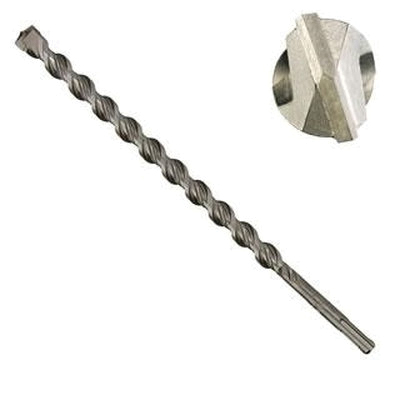

322054 Hammer Drill Bit, 1 in Dia, 10 in OAL, Twist Flute, 1-Flute, 2 in Dia Shank, SDS-Plus Shank
Sku: 8368193-052303-32
$50.06
20 Available at
SHIP TO STORE
Estimated Arrival On: 01/23/2026
Bit tip and flutes remove dust more efficiently while the reduced area above the flute prevents binding while drilling. Chrome vanadium shaft and high heat-resistance for reduced tip loss, fits all SDS plus and Hilti TE-C rotary hammers.
- Fits all SDS-plus and Hilti TE-C rotary hammers
- Patent pending omnidirectional fastener attaches in any direction for maximum flexibility
- Signature 26 deg Taper Grind® edge for optimum sharpness, precise cutting and easy sharpening
- Copper braze material gives high heat-resistance for reduced tip loss
- Chrome vanadium shaft through-hardened to 50-53HrC
- Hot isostatically pressed to extend life and resist breakage
- Reduced vibration with Shockshield™ grip
Diameter
1
Flute Type
Twist
Number of Flutes
1
Flute Length
8
Shank Type
SDS-Plus
Quick Change Shank
No
Shank Diameter
2
Point Type
Standard
Cutting Edge Material
Carbide
Material
Chrome Vanadium Steel
Finish
Double Tempered
Overall Length
10
Cutting Direction
Right Hand
Applicable Materials
Masonry
