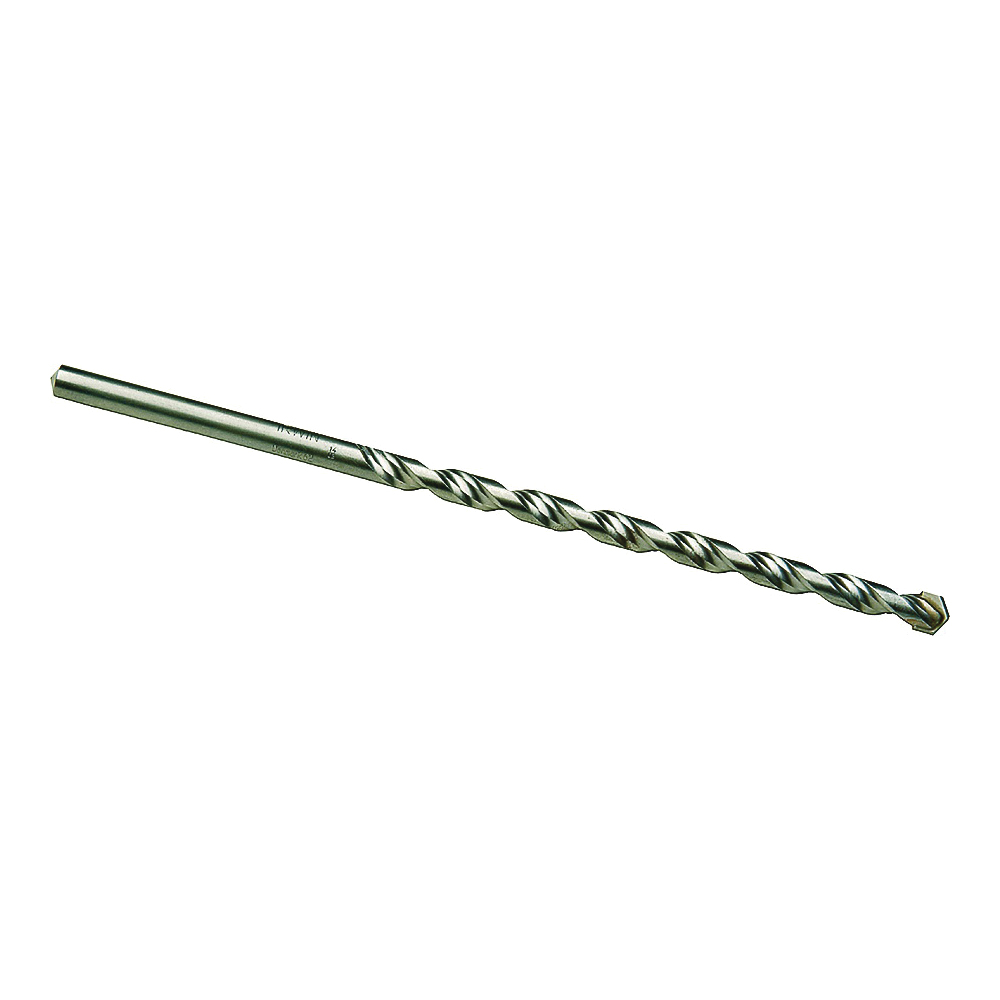

326002 Rotary Hammer Drill Bit, 3/16 in Dia, 3-1/2 in OAL, Percussion, Twist Flute, 2-Flute, 3/16 in Dia Shank
Sku: 9122169-052303-32
$6.27 / Card
29 Available at
SHIP TO STORE
Bit will fit all hammer drills with 3 jaw or Jacobs chuck and features a chrome vanadium shaft through hardened to 50-53HrC, shot-peened, double-tempered finish, flute geometry removes dust from the hole quicker, copper braze material gives high heat resistance. All tips made to ANSI specifications.
- Fits all hammer drills with 3-jaw or Jacobs chuck
- Patented flute geometry removes dust from the hole quicker for fast drilling and long life
- Shot-peened, double-tempered finish reduces breakage
- Copper braze material gives high heat resistance for reduced tip loss
- Chrome vanadium shaft through-hardened to 50-53HrC
- Hot isostatically pressed to extend life and resist breakage
- Up to 150% faster than other competitive bits
Type
Percussion
Diameter
3/16
Flute Type
Twist
Number of Flutes
2
Flute Length
2
Shank Type
Straight
Quick Change Shank
No
Shank Diameter
3/16
Shank Length
1-1/2
Point Type
Diamond
Cutting Edge Material
Carbide
Material
Chrome Vanadium Steel
Finish
Double Tempered
Overall Length
3-1/2
Cutting Direction
Right Hand
Applicable Materials
Masonry
