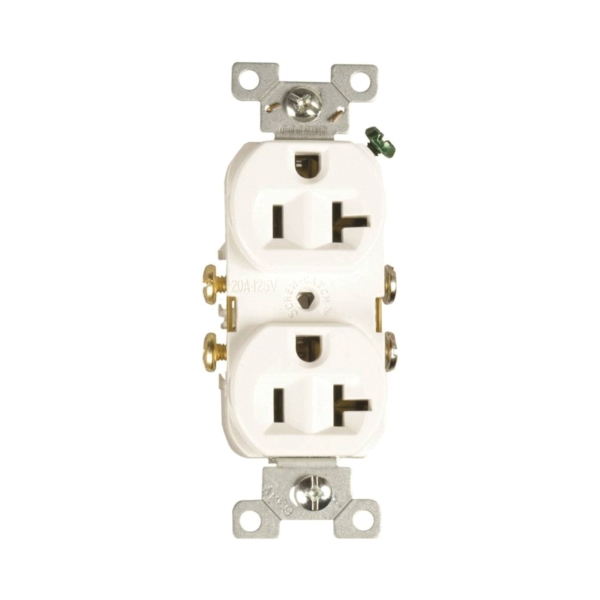

CR20W Duplex Receptacle, 2 -Pole, 20 A, 125 V, Side Wiring, NEMA: 5-20R, White
Sku: 0254029-052303-18
$3.56
253 Available at
SHIP TO STORE
Pass & Seymour Duplex Receptacle, 125 V, 20 A, 2 Pole, 3 Wires, 1 ph, Side Wiring, 14 to 10 AWG Wire, 5-20R, -40 to 50 deg C Operating, Wall Mounting, Nylon/Thermoplastic, White, Dimensions: 3.281 in H x 1.322 in W x 0.78 in D
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly
- 0.032 in thick, brass, triple wipe power contacts for lasting retention
- Easily accessed break-off, line contact connecting tab for fast, easy split circuit wiring
- Impact-resistant nylon face and thermoplastic back body
- Accepts #14 to #10 AWG solid or stranded copper or copper-clad wire
- Terminal compartments isolated from each other for positive conductor containment
- Tri-drive terminal and mounting screws
- Auto-ground clip assures positive ground
Voltage Rating
125
Current Rating
20
Number of Poles
2
Number of Wires
3
Number of Phases
1
Wiring Type
Side
Wire Size
14 to 10
NEMA Configuration
5-20R
Operating Temperature
-40 to 50
Mounting Type
Wall
Material
Nylon/Thermoplastic
Color
White
Dimensions
3.281 in H x 1.322 in W x 0.78 in D
