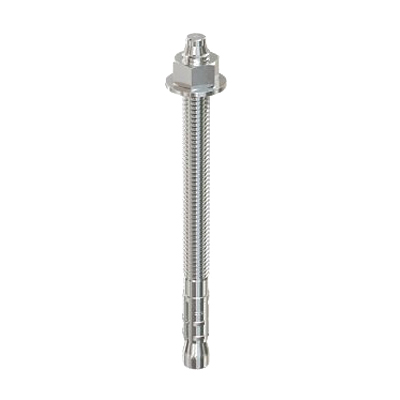

Strong-Bolt 2 STB2-37500S4F50 Wedge Anchor, 3/8 in Dia, 5 in L, Stainless Steel

Name: simpson-strong-tie-strong-bolt-2-stb2-37500s4f50-wedge-anchor-38-in-dia-5-in-l-stainless-steel
Brand: Simpson Strong-Tie
SKU: 12270050

Sku: 12270050

CALL FOR PRICE

0 Available at San Marcos

Code listed for cracked and uncracked concrete and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location, this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.

Chamfered top designed to prevent mushrooming during installation
Qualified for static and seismic loading conditions, seismic design categories A through F
Suitable for horizontal, vertical and overhead applications
Qualified for minimum concrete thickness of 3-1/4 in and lightweight concrete over steel deck thickness of 2-1/2 and 3-1/4 in

Diameter

3/8

Length

Minimum Embedment Depth

1-7/8

Drill Size

3/8

Thread Length

3-9/16

Tensile Strength

100000

Shear Strength
