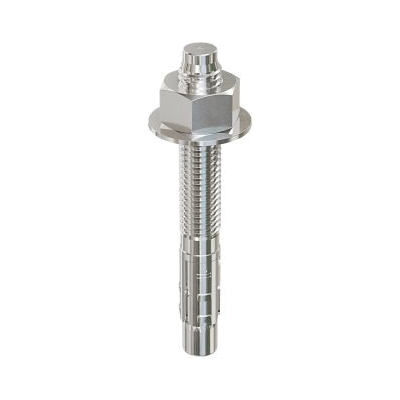

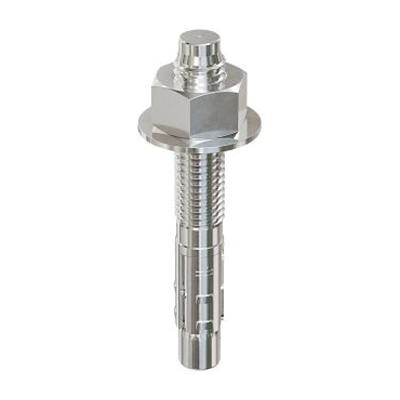

Strong-Bolt 2 STB2-62700MGF20 Wedge Anchor, 5/8 in Dia, 7 in L, Carbon Steel, Galvanized

Name: simpson-strong-tie-strong-bolt-2-stb2-62700mgf20-wedge-anchor-58-in-dia-7-in-l-carbon-steel-galvanized
Brand: Simpson Strong-Tie
SKU: 12270068

Sku: 12270068

CALL FOR PRICE

0 Available at San Marcos

The Strong-Bolt 2 wedge-type expansion anchor in a mechanically galvanized finish can be used where a high load resisting anchor is needed for exterior applications. It has the same dual undercutting embossments on each clip segment as the zinc electro-plated version. Suitable for horizontal, vertical and overhead applications, the STB2-MG anchor is tested in uncracked concrete in accordance with AC193 and also in uncracked masonry in accordance with AC01.

Chamfered top designed to prevent mushrooming during installation
Tested for minimum concrete thickness of 3-1/4 in
Standard (ANSI) fractional sizes fits standard fixtures and installs with common drill bit and tool sizes

Diameter

5/8

Length

Minimum Embedment Depth

2-3/4

Drill Size

5/8

Thread Length

4-15/16

Tensile Strength

108000

Minimum Clearance
