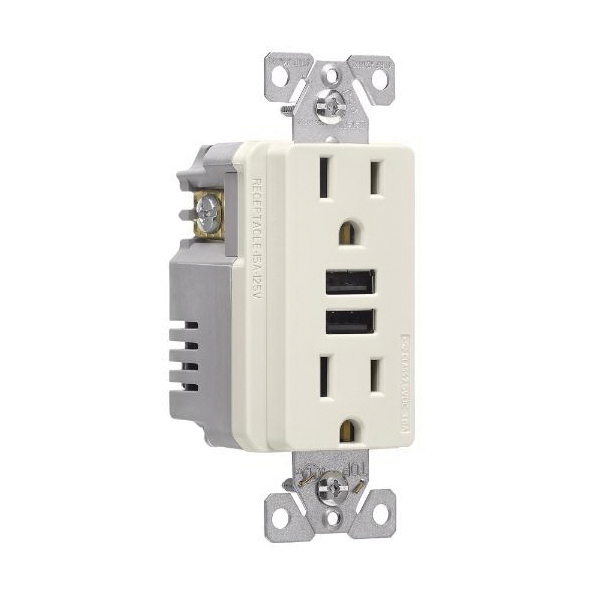

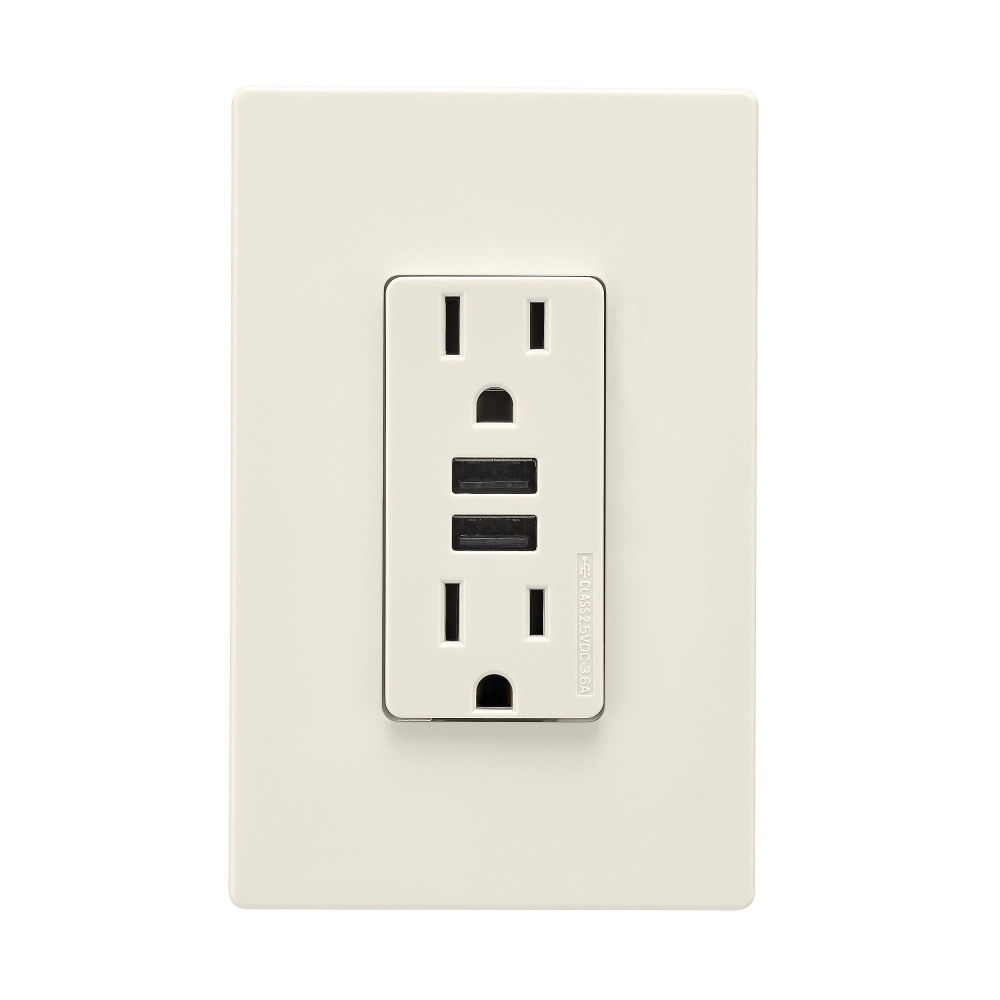

TR7765LA-KB-L USB Charger with Duplex Receptacle, Type A/C, 2-Pole, 15 A, 125 V, NEMA 5-15R, Light Almond
Sku: 1452978-052303-18
$29.15 / Card
14 Available at
SHIP TO STORE
Eaton USB Charger with Duplex Receptacle, 125 V, 15 A, Number of Poles: 2, Number of Wires: 3, Number of USB Ports: 2, USB Type: Combination, Wiring Type: Screw Terminal, NEMA Configuration: NEMA 5-15R, Operating Temperature: -20 to 60 deg C, Steel/Zinc, Light Almond, Dimensions: 1.4 in L x 1.3 in W x 4.19 in H
- Standard AC duplex receptacle with two USB charging ports rated at 3.6 A
- Dual USB ports charges most compatible USB electronic devices
- Tamper-resistant shutters provide compliance with 2014 NEC® Article 406.12 that states that all 15 A and 20 A, 125 V receptacles installed in dwelling units must be tamper-resistant
- Replaces a standard duplex receptacle
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Thermoplastic top and back-body are virtually unbreakable to deliver years of durable performance
- Steel mounting strap is zinc-plated for added corrosion resistance
- Convenient patented built-in wire strippers speed installation
Type
Duplex
Voltage Rating
125
Current Rating
15
Number of Poles
2
Number of Wires
3
Number of USB Ports
2
USB Type
Type A/C
Wiring Type
Screw Terminal
Wire Size
12 to 14
NEMA Configuration
NEMA 5-15R
Material
Steel/Zinc
Color
Light Almond
Dimensions
1.4 in L x 1.3 in W x 4.19 in H
