HingeJig 12260003 Door Hinge Template, ABS, For: 1-3/8 in and 1-3/4 in THK Doors

Name: HingeJig 12260003 Door Hinge Template, ABS, For: 1-3/8 in and 1-3/4 in THK Doors
Brand: Milescraft
SKU: 31360192

Sku: 31360192

CALL FOR PRICE

0 Available at San Marcos

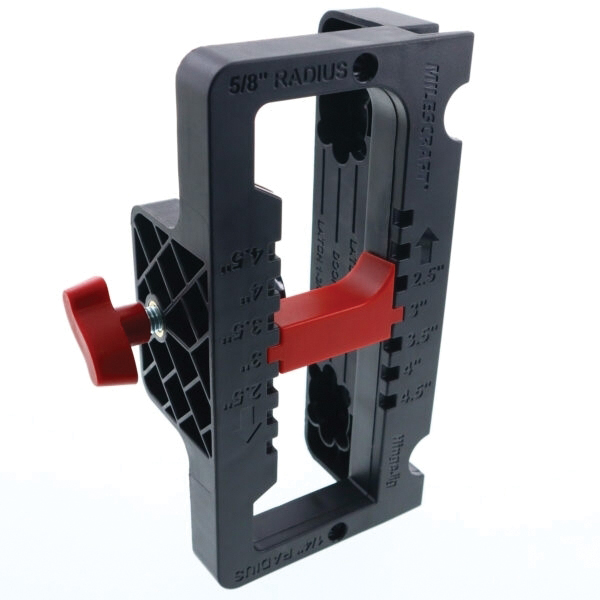

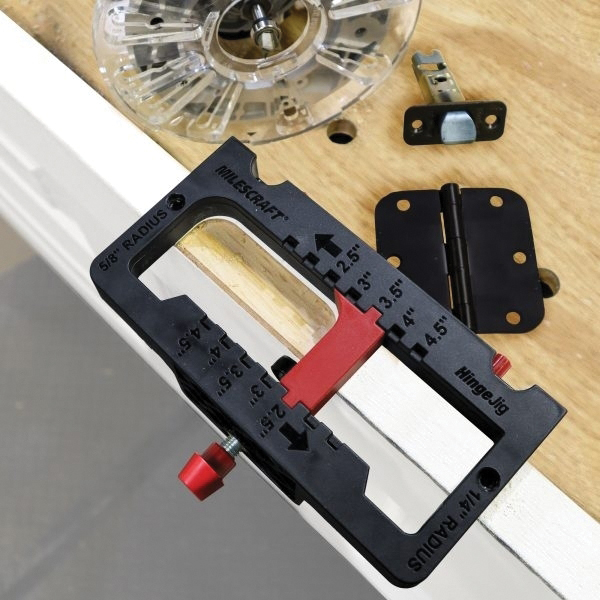

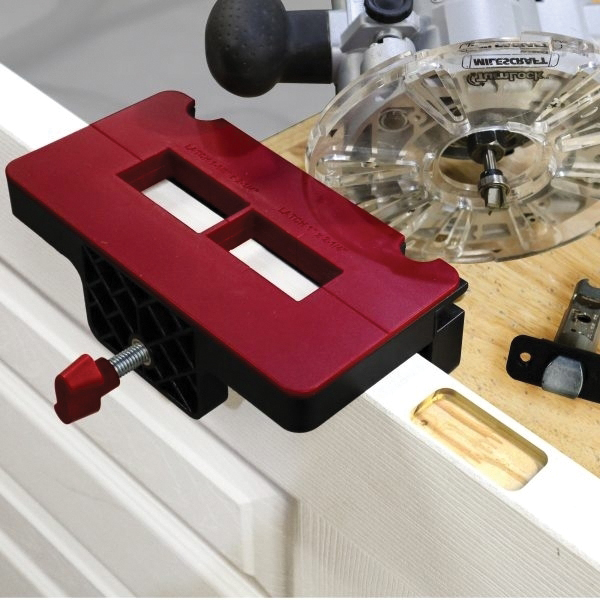

Save time and remove the guess work when installing new doors into existing frames with the Milescraft HingeJig™. This self-clamping jig comes with everything needed to rout hinge and latch mortises onto new doors. The self-clamping feature holds the HingeJig™ in place while routing without the use of screws or nails that can leave holes in a finished door.

Padded clamp design sets up quickly and prevents damage to doors caused by mounting screws or nails
Adjustable settings allow door hinge jig to be used on all standard size 1-3/8 in and 1-3/4 in THK doors
Routs hinge mortises for 2-1/2 to 4-1/2 in hinges
Cut professional hinge mortises with 1/4 in, 5/8 in or square corners
Design of the HingeJig™ eliminates need for multiple inserts to rout different hinge corner radiuses
Set router bit depth with built-in depth setting gauge for smaller or larger size door hinges
Includes custom router bit with ball-bearing to cut clean and smooth door hinge mortises

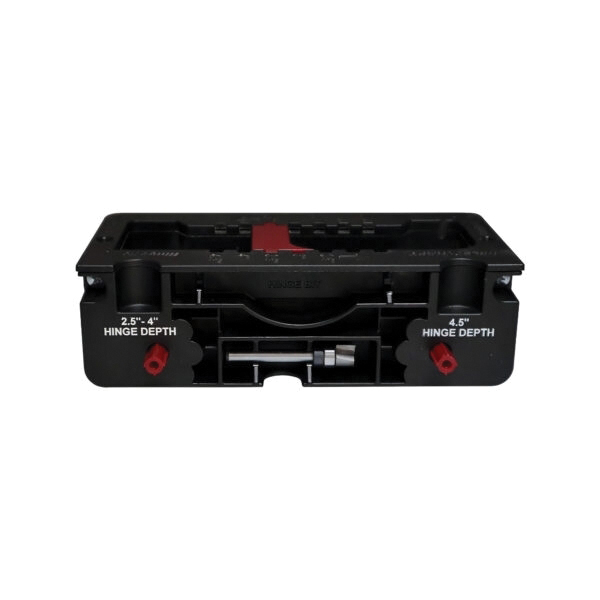

Contains built-in storage compartments for router bit and available self-centering hinge bit for convenient retrieval
