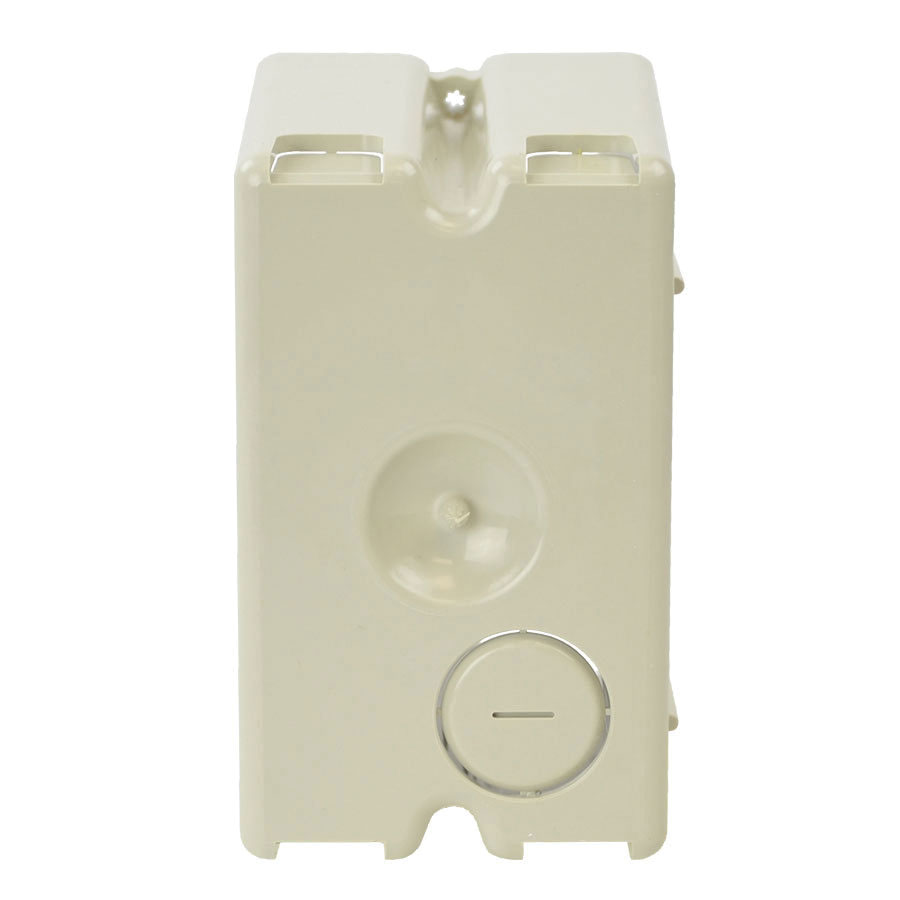

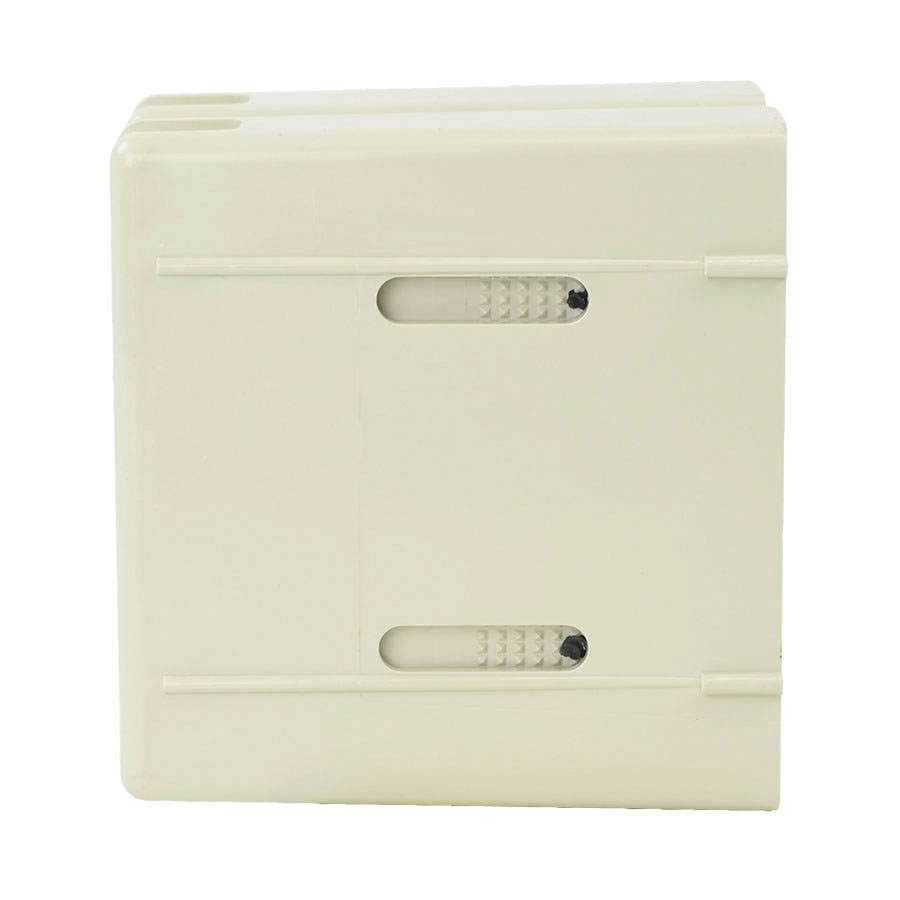

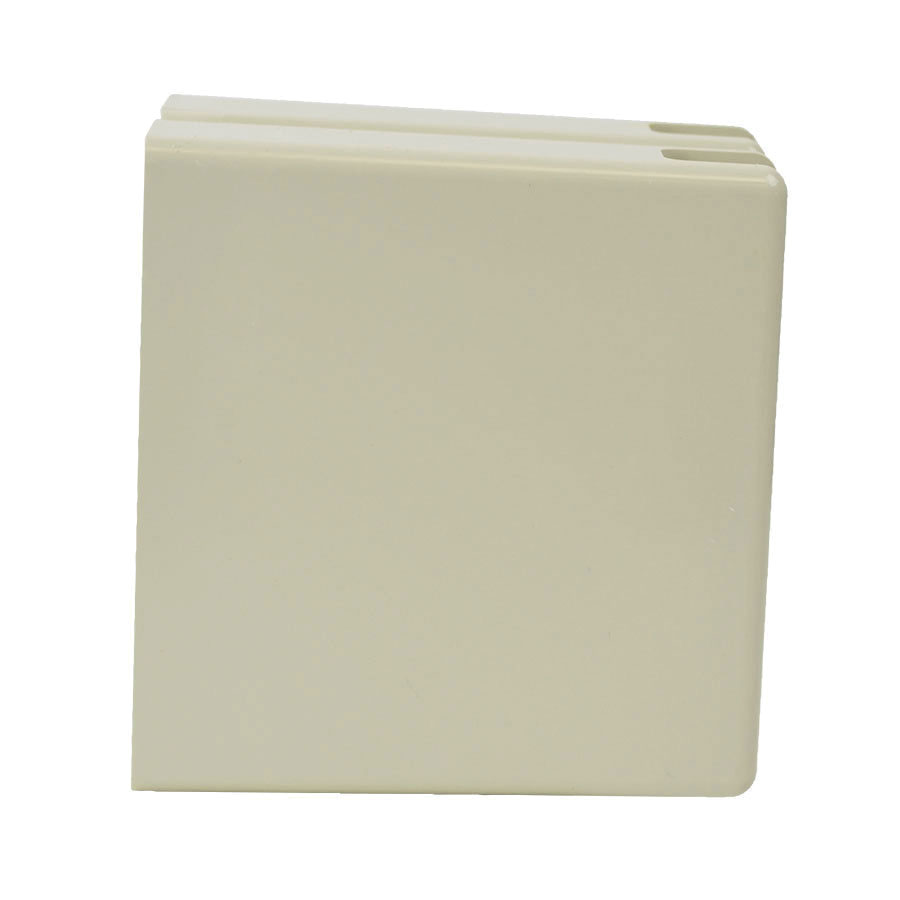

SB-1 Electrical Box, 1-Gang, 2-Outlet, 1-Knockout, 1/2 in Knockout, PVC, Beige/Tan

Name: SB-1 Electrical Box, 1-Gang, 2-Outlet, 1-Knockout, 1/2 in Knockout, PVC, Beige/Tan
Brand: Sliderbox
SKU: 3825098-052303-18

Product SKU #3825098-052303-18

Shop the brand

$4 .12

Ship to Store

404 As soon as 09/03

Delivery

404 As soon as 09/03

Free Pickup at San Marcos

404 in stock Check other stores

Switch Box Options: Slider 3-9/16Lx2-5/16Wx3-3/4H PVC

Carlon Switch 4.54Lx2.8Wx2.42H Carlon Switch 4.62Lx4.62Wx1.98H 2Out Slider 3-9/16Lx4Wx3-3/4H Poly Carlon Switch 4.54Lx2.8Wx2.3H 3/4 Hub Carlon Switch 4.54Lx2.8Wx2.3H 1/2 Hub Carlon Switch 4.54Lx2.8Wx2.3H 1/2 Hub Carlon Switch 4.54Lx2.8Wx2.3H 3/4 Hub Carlon Switch 4.56Lx2.8Wx2H Carlon Switch 4.62Lx4.62Wx1.98H 1Out Carlon Switch 4.62Lx4.62Wx2H Orbit Gangable Switch 2Wx1-1/2Dx3H Orbit Gangable Switch 2Wx2-1/4Dx3H Orbit Gangable Switch 2Wx3-1/2Dx3H Orbit Switch 4Wx1-1/2Dx4H Raco Gangable Switch 1.5Lx4.22Wx2H Raco Outlet 4Wx1-1/2Dx4H Raco Square 2Lx4.22Wx2H Raco Switch 1.06Lx7Wx2.13H Raco Switch 1.864Lx2Wx4.219H Raco Switch 2.19Lx4Wx4H Raco Switch 2.25Lx4.22Wx2H Raco Switch 2.5Lx4.22Wx2H 5-Kout Raco Switch 2.5Lx4.22Wx2H 8-Kout Raco Switch 2-1/2Lx2Wx3-3/8H 7-Kout Raco Switch 3.032Lx3.5Wx3.625H Raco Switch 4.087Wx4.056Hx1.79D Raco Switch 4.25Hx2.56Wx2.5D

Members get savings and rewards! Sign in or join for FREE

Free & Easy Returns in Store

Read Return Policy

Molded of engineering grade non-metallic thermoplastic. Adjustable, no need to remove or relocate mounting screws to re-position the box. Slots retain slider plate and guide it in a straight motion. Internal rails guide slider plate for smooth mounting adjustability in wall substrates from 1/2 in to 1-3/8 in thick and ceiling substrates from 1/2 in to 1-5/32 in. Square corner design allows easy wall cut-in (Old work applications). Molded spline device holes for quick device screw installation. 23 cu-in volume, 1/2 in knockout. Internal steel, stud/wood screws. 3-9/16 in D x 2-1/4 in W x 3-3/4 in H. UL listed for 2 hrs fire resistive walls and ceilings.

Single-gang adjustable electrical box for use with non-metallic sheathed Cable
Molded-in splined device holes, adjustable slider plate for additional wall substrate thickness
Rectangular exterior for easy cut-in, leveling ribs, offset gauge marks

Cable Entry

Knockout

Number of Outlets

Number of Knockouts

Knockout Size

1/2

Number of Gangs

Insulation Type

Non-Metallic

Shape

Rectangular

Cubic Capacity
