XNB03Z Framing Nailer, Tool Only, 18 V, 6 Ah, 41 Magazine, 21 deg Collation, Nail Fastener
Sku: 5606405-052303-32
$421.49
3 Available at
SHIP TO STORE
Estimated Arrival On: 01/23/2026

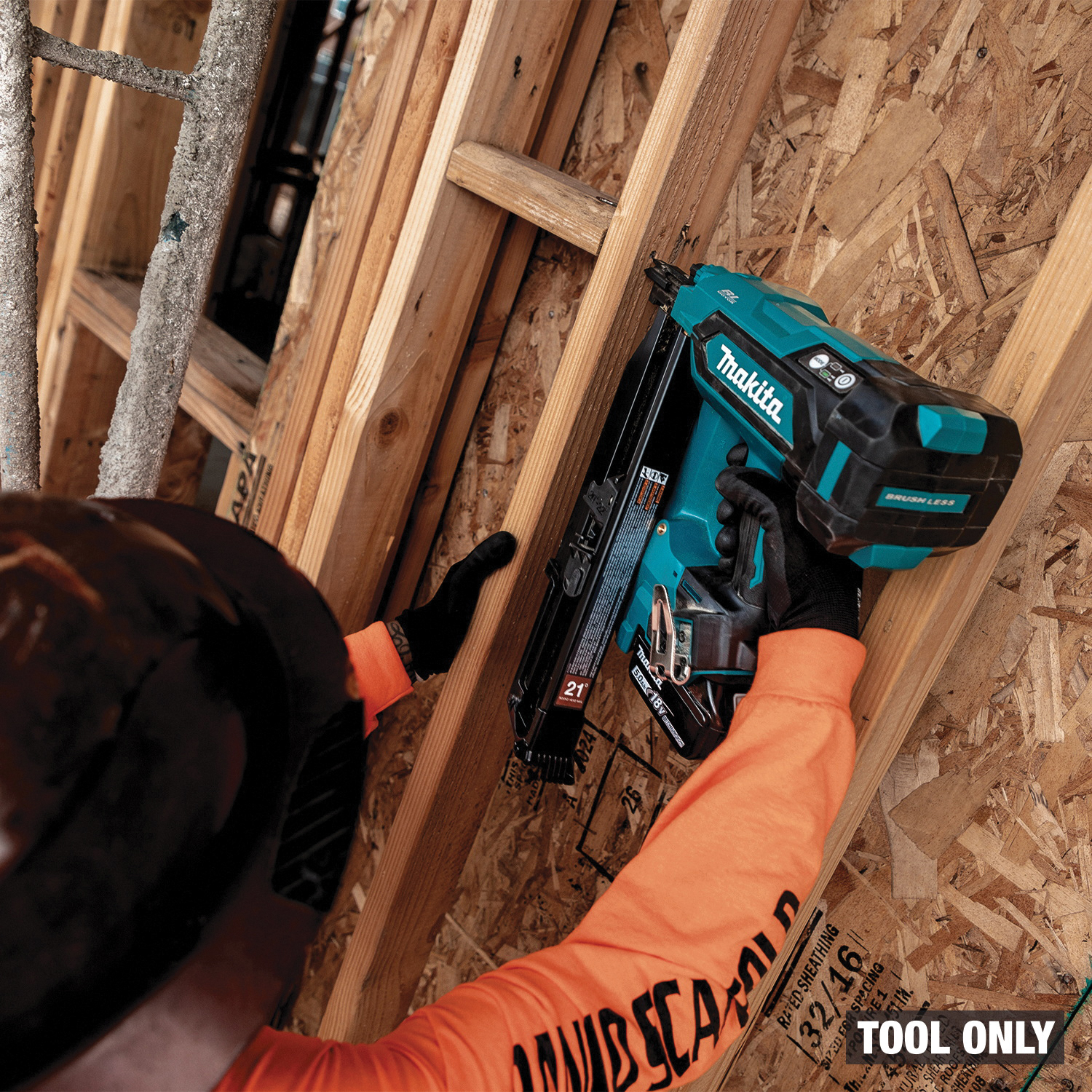

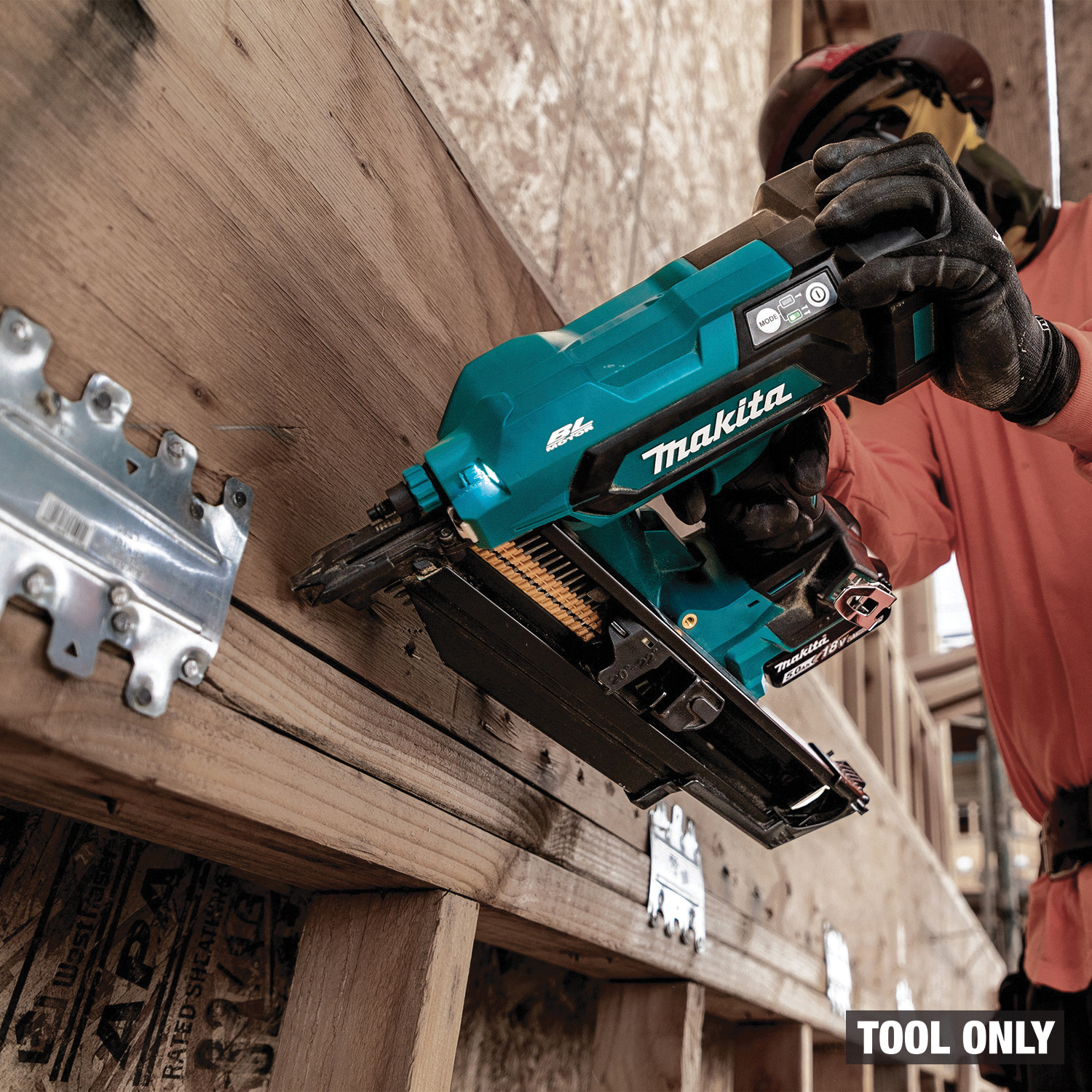

The Makita 18V LXT® 21 deg full round head 3-1/2 in framing nailer (XNB03) drives full round head nails into dense engineered lumber with the power of a pneumatic nailer. The XNB03 can drive up-to 1000 framing nails on a single charge of a 18V LXT® 6 Ah battery (battery sold separately). The 21 deg full round head 3-1/2 in framing nailer features a two-mode selector switch that allows the operator to select sequential nailing or bump fire options. It features an anti-slip nose for controlled nailing at almost any angle. The framing nailer features a "tool-less" depth adjustment engineered for more precise flush and countersink nailing. The framing nailer drives 21 deg plastic collated framing nails from 2 to 3-1/2 in in L and 0.113 to 0.148 in Dia. It weighs only 11.9 lb with 18V LXT® battery (battery not included) for reduced operator fatigue.
- Drives full-round head nails into dense engineered lumber with power and ease
- Drives up-to 1000 framing nails on a single charge (battery not included)
- Two-mode selector switch allows operator to select sequential nailing or bump fire options
- Anti-slip nose for controlled nailing at an angle
- "Tool-less" depth adjustment engineered for more precise flush and countersink nailing
- Anti-dry fire mechanism engineered to help prevent driving blanks
- Weighs only 11.9 lb with 18V LXT® battery (battery not included) for reduced operator fatigue
- Rear lock-and-load magazine with 41 nail capacity for maximum efficiency
- Built-in LED light illuminates the work area

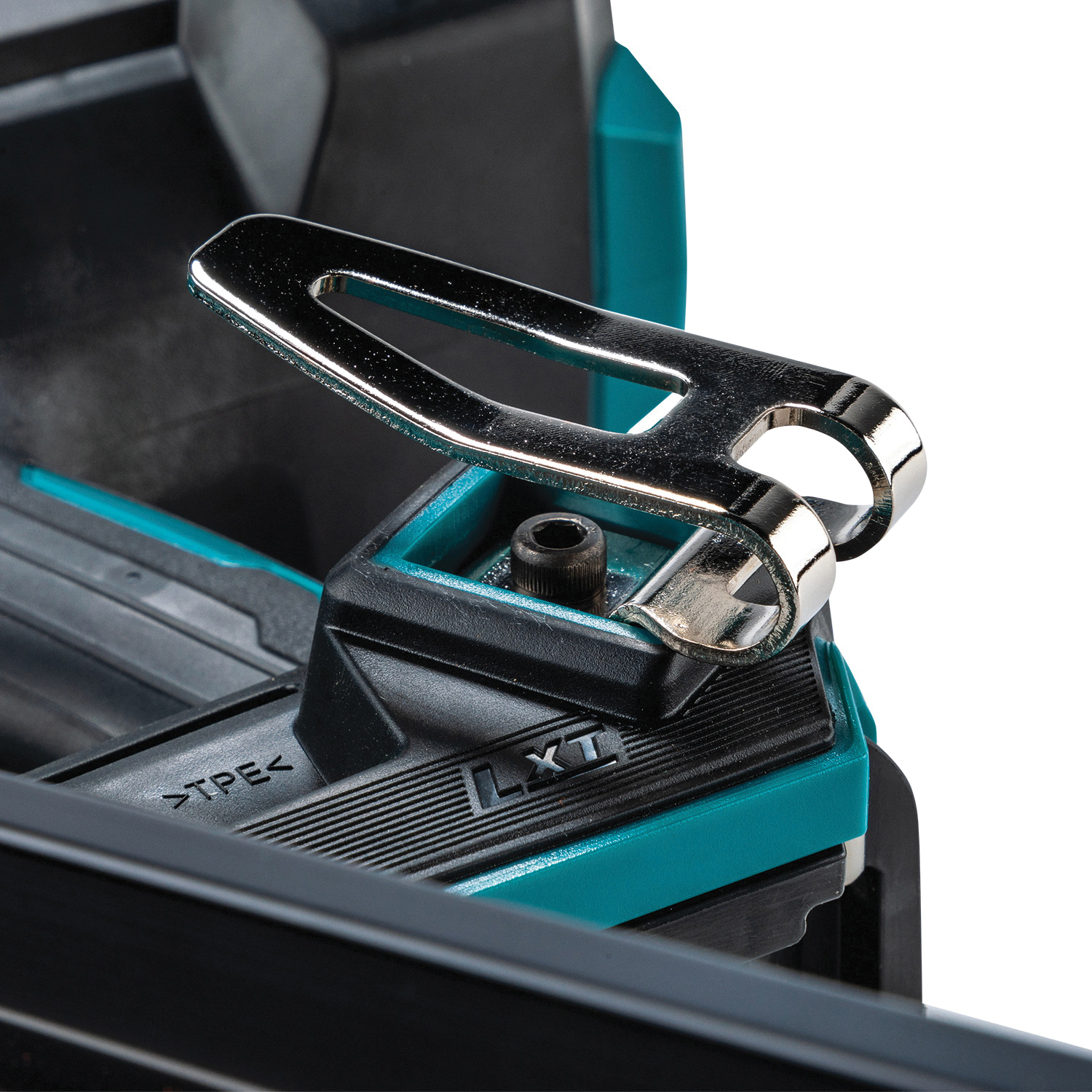

- Belt hook with retractable extra wide tool hook secures the tool when not in use
Tool Only/Battery Included
Tool Only
Battery Voltage
18
Battery Capacity
6
Magazine Capacity
41
Collation Angle
21
Fastener Type
Nail
Fastener Size
2 to 3-1/2, 0.113 to 0.148
Includes
(1) XNB03Z, XNB07Z Nose Cover, (1) 783202-0 Hex Wrench, (1) XNB03Z, 347C14-9 XNB07Z Belt Hook, (1) XNB03Z, XNB07Z Rafter Hook and (1) Tool Case
Magazine Type
Lock-and-Load
Handle Type
Ergonomic
Battery Type
Lithium-Ion
