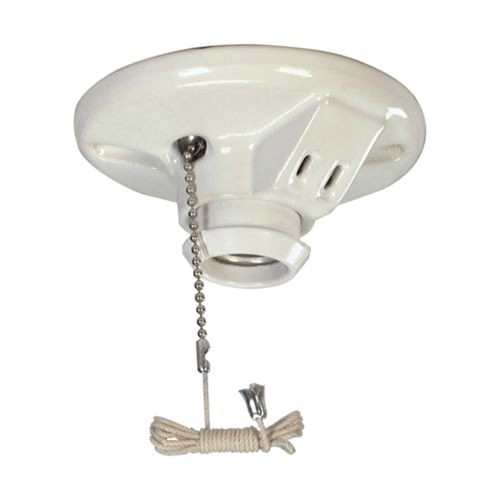

669-SP Lamp Holder, 125 VAC, 660 W, Porcelain Housing Material, White
Sku: 6173223-052303-21
$6.98
27 Available at
SHIP TO STORE
Estimated Arrival On: 01/23/2026
With 15 A 125 VAC outlet. High-strength insulator porcelain. Mounts on 4 in outlet boxes with breakout for 3-1/4 in box-mounting. Pull chain socket interior is removable. Includes ball chain, 3 ft cord, connector and end bell. Terminal screws are backed out ready for wiring without removing the interior. Dust ring protects against plaster and dirt. UL 496 listed, NOM certified, meets CSA requirements. 15 A, 125 V, 660 W.
- Top wire versions have terminal screws backed out ready for wiring without removing interior
- Push wire terminals are top wired with two-push-in terminals and two-screw terminals for continuous wiring
- Plastic models made with high-temperature thermoset plastic to reduce breakage
- Porcelain models made of high-strength insulator porcelain - pull chain versions feature removable interiors
- Mounts on 4 in outlet boxes with breakout for 3-1/4 in box-mounting
- Leads are 6 in (152.4 mm) 221 deg F (105 deg C) insulated stranded #16 AWG, stripped 3/4 in (19 mm)
- Pull chain devices include ball chain, 3 ft (0.9 m) of cord, connector and end bell
Type
Interior
Base Type
Medium
Voltage Rating
125
Current Rating
15
Wattage Rating
660
Wire Size
14 to 10
Connection Type
Screw
Housing Material
Porcelain
Mounting Type
Box
Color
White
Wiring Type
Top
Dimensions
4.65 in Dia x 2.4 in H
Includes
NEMA 1-15P Plug, 2 W Outlet, (2) Screw Terminals and Pull Chain Switch
Additional Information
Pull Chain Actuator
