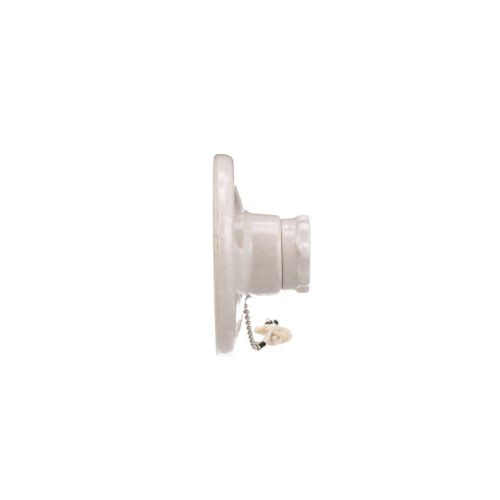

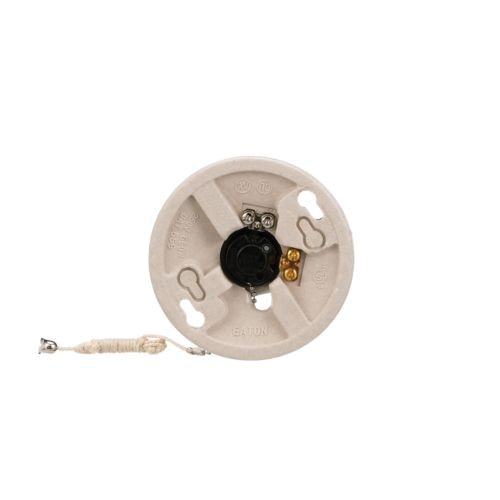

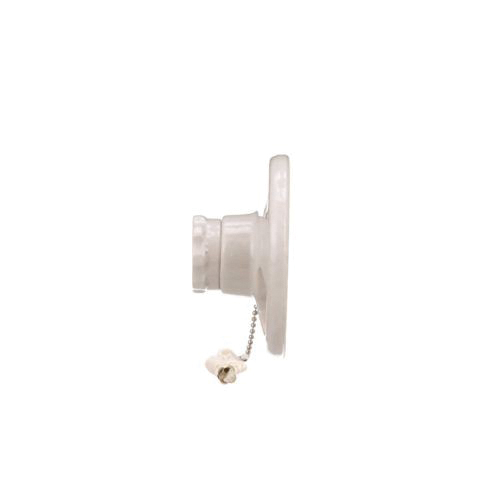

659-SP Lamp Holder, 4.5 in Dia x 2.14 in H Dimensions, 250 VAC, 660 W, White
Sku: 6173249-052303-21
$5.29
218 Available at
SHIP TO STORE
Estimated Arrival On: 05/13/2026
Porcelain, mounts on 4 in outlet box with breakout for 3-1/4 in box mounting. Interior is removable. Includes ball chain, 3 ft of cord, connector and end ball. UL listed, meets CSA requirements, NOM certified. 250 V, 660 W.
- Top wire versions have terminal screws backed out ready for wiring without removing interior
- Push wire terminals are top wired with two-push-in terminals and two-screw terminals for continuous wiring
- Plastic models made with high-temperature thermoset plastic to reduce breakage
- Porcelain models made of high-strength insulator porcelain - pull chain versions feature removable interiors
- Mounts on 4 in outlet boxes with breakout for 3-1/4 in box-mounting
- Leads are 6 in (152.4 mm) 221 deg F (105 deg C) insulated stranded #16 AWG, stripped 3/4 in (19 mm)
- Pull chain devices include ball chain, 3 ft (0.9 m) of cord, connector and end bell
Type
Interior
Base Type
Medium
Voltage Rating
250
Wattage Rating
660
Wire Size
14 to 10
Connection Type
Screw
Housing Material
Porcelain
Mounting Type
Box
Color
White
Wiring Type
Top
Dimensions
4.63 in Dia x 2.5 in H
Includes
(4) Feed Through Screw Terminals and Keyless Switch
Additional Information
Pull Chain Actuator, 14 lbf-in Torque Rating
