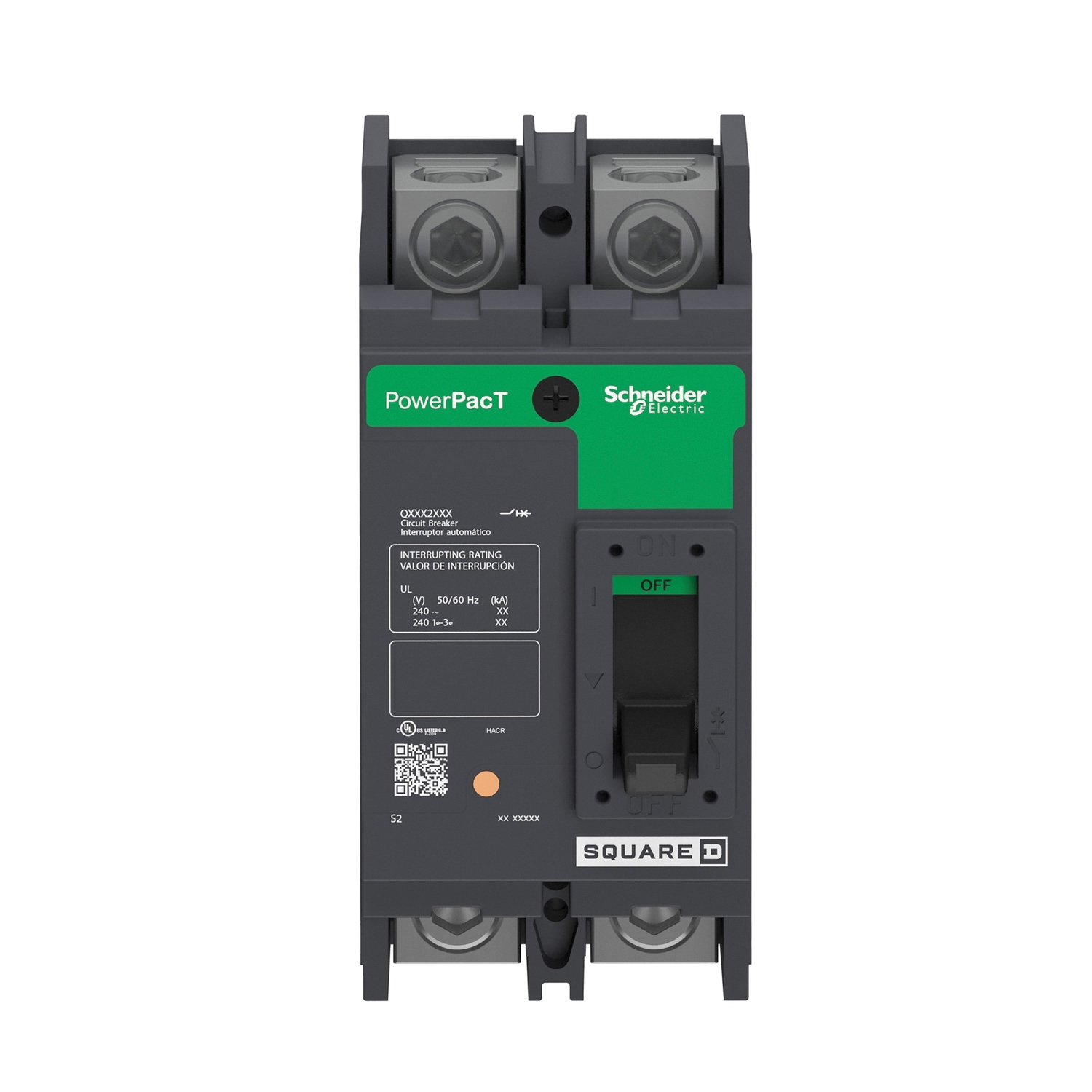

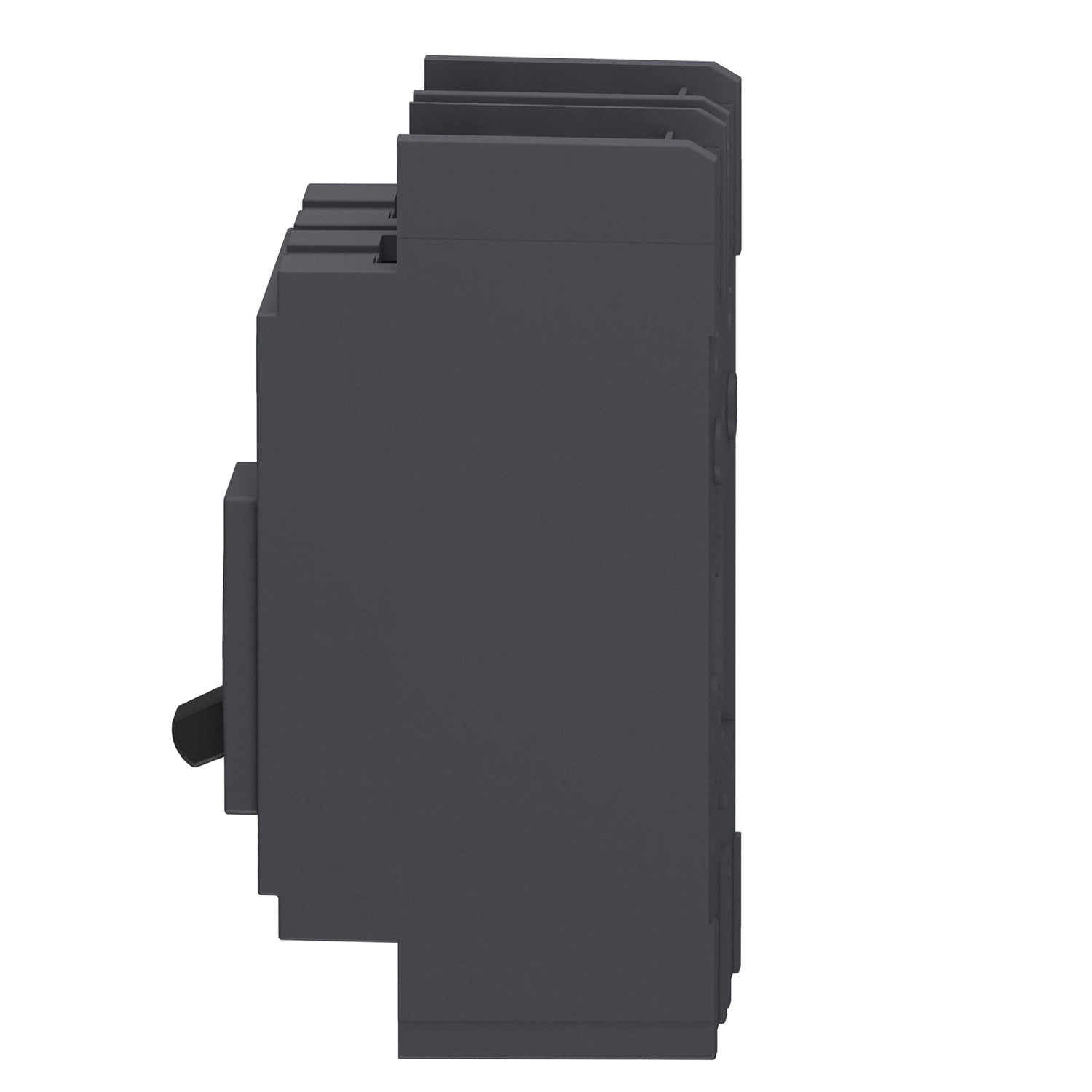

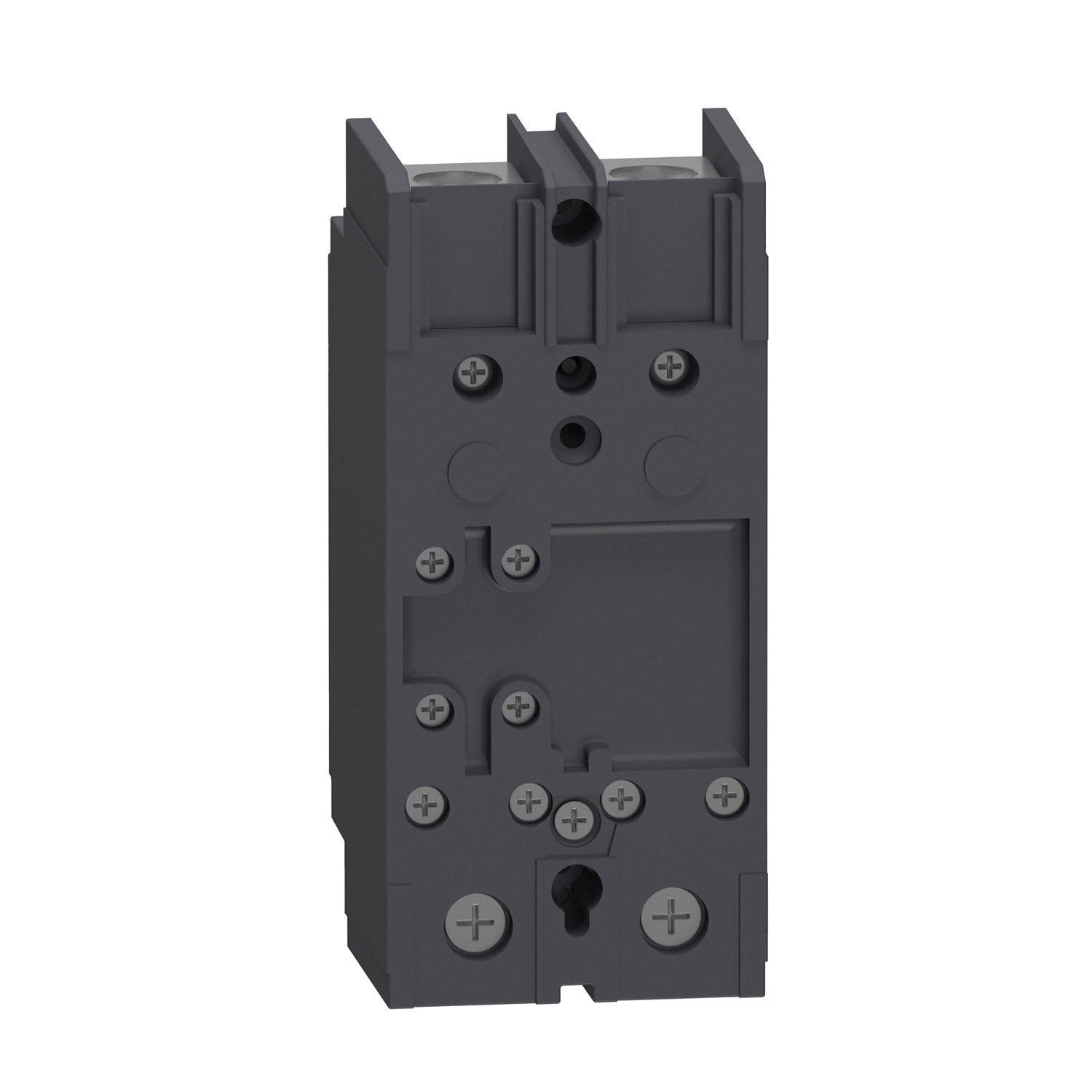

QBL22200 Circuit Breaker, Type QBL, 200 A, 2 -Pole, 240 V, Plug Mounting, Black
Sku: 6191845-052303-21
$185.58
1 Available at
SHIP TO STORE
Estimated Arrival On: 03/26/2026
PowerPact® Q-frame circuit breakers are used for overcurrent protection and switching on ac systems. They are designed for 240 VAC applications.
- Shielded copper bus bar
- Available in single and three phase
- Ground bar is included with all main lugs load centers with three mounting locations
- Convertible mains let you meet changing job-site requirements
- Tangential main service knockouts
- Enclosure rotates for top or bottom feed to reduce service cable waste
- Qwik-Open circuit breaker protection
- Exclusive Visi-Trip red indicator
- Quick make - quick break mechanism
- Plug-on design, easy to install
Type
Type QBL
Voltage Rating
240
Current Rating
200
Operating Frequency
50/60
Number of Phases
1
Number of Poles
2
Interrupt Rating
10
Actuator Type
Magnetic, Thermal
Wire Size
4
Terminal Type
Lug
Enclosure Type
Q-Frame
Mounting Type
Plug
Color
Black
Dimensions
3.93 in W x 4.5 in D x 6.47 in H
