Square D

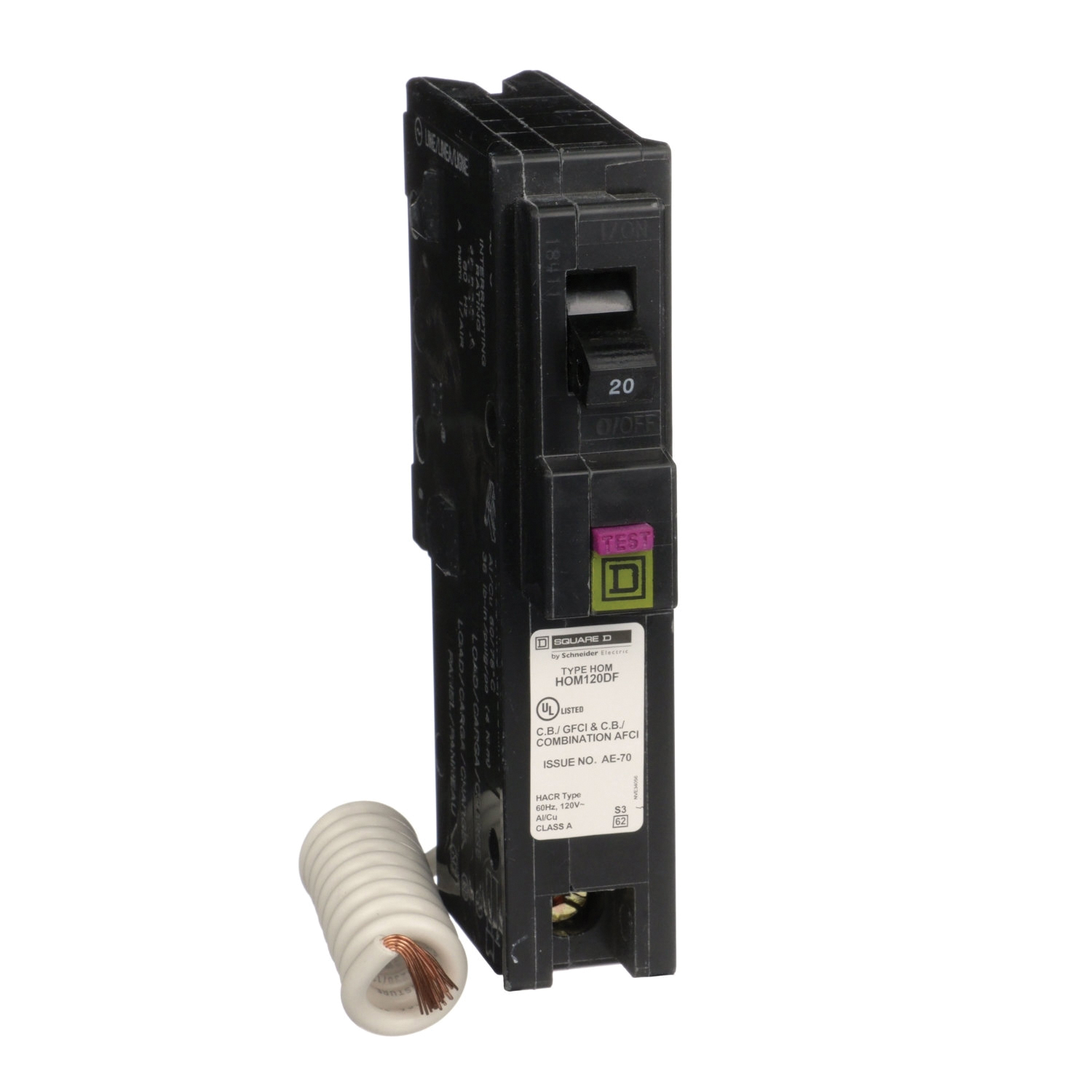

HOM120DFC Circuit Breaker, Dual Function, Mini, 20 Amp, 1 -Pole, 120 V, Plug Mounting

Product SKU #6995013-052303-18
Shop the brand
$74 .33
Ship to Store
10 As soon as 10/01
Delivery
10 As soon as 10/01
Free Pickup at San Marcos
10 SHIP TO STORE Check other stores
Square D Circuit Breaker Options: HOM120DFC 20 Amp, 1 Pole

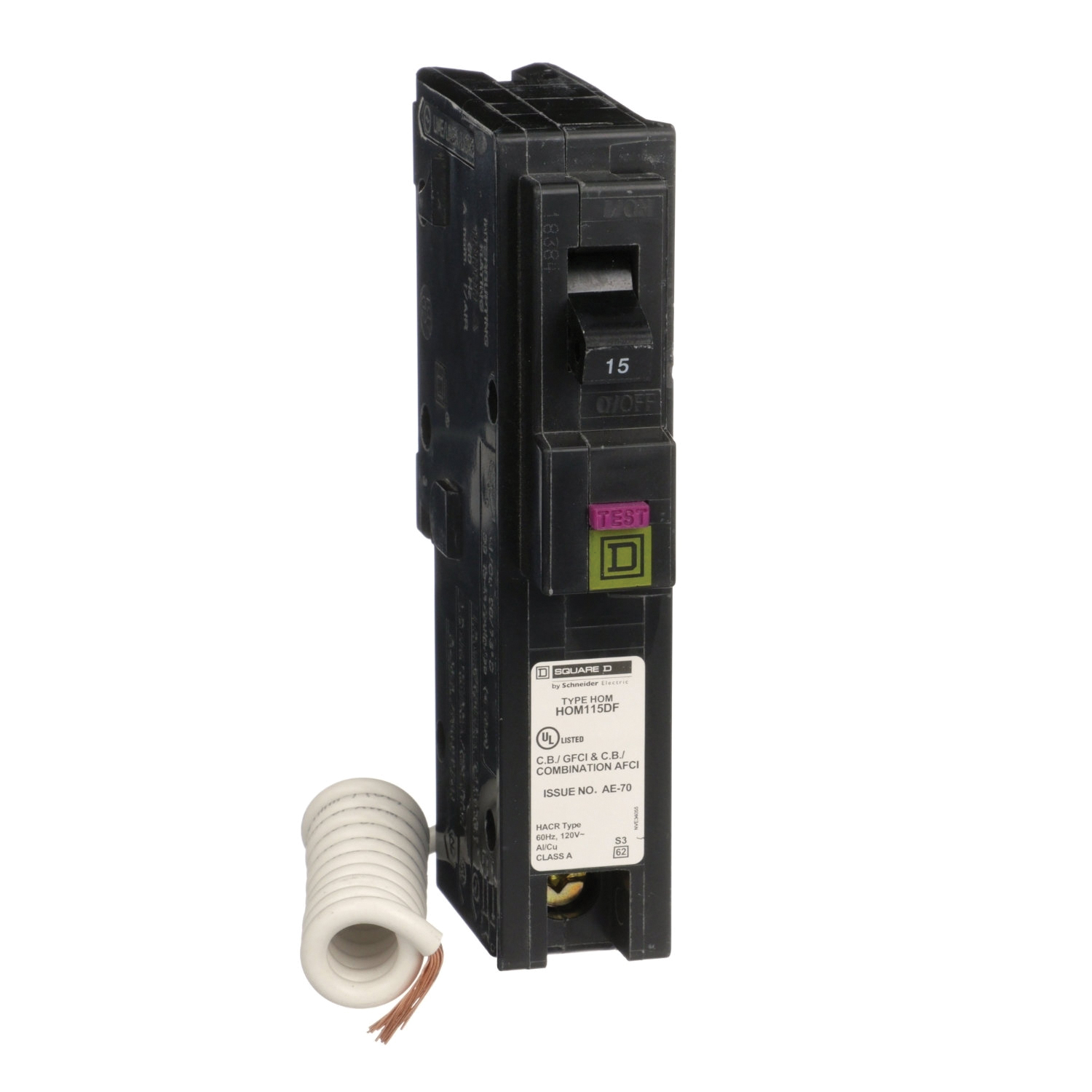

HOM115DFC 15 Amp, 1 Pole HOM115PDFC 15 Amp, 1 Pole HOM115PCAFIC 15 Amp, 1 Pole HOM120PDFC 20 Amp, 1 Pole HOM120PCAFIC 20 Amp, 1 Pole HOM2125CP 125 Amp, 2 Pole QO115CAFIC 15 Amp, 1 Pole QO115DFC 15 Amp, 1 Pole QO115PCAFIC 15 Amp, 1 Pole QO120CP 20 Amp, 1 Pole QO2020CP 20 Amp, 1 Pole QO120PDFC 20 Amp, 1 Pole HOM115CP 15 Amp, 1 Pole HOM115CAFIC 15 Amp, 1 Pole HOM120GFICP 20 Amp, 1 Pole HOM220CP 20 Amp, 2 Pole HOM120CP 20 Amp, 1 Pole HOM120CAFIC 20 Amp, 1 Pole HOMT2020CP 20 Amp, 1 Pole HOM230CP 30 Amp, 2 Pole HOM130CP 30 Amp, 1 Pole HOM240CP 40 Amp, 2 Pole HOM250GFICP 50 Amp, 2 Pole HOM250CP 50 Amp, 2 Pole HOM260CP 60 Amp, 2 Pole HOM2100CP 100 Amp, 2 Pole QO230CP 15 Amp, 2 Pole QO115CP 15 Amp, 1 Pole QO220CP 20 Amp, 2 Pole QO120CP 20 Amp, 1 Pole QO2020CP 20 Amp, 1 Pole QO120CAFIC 20 Amp, 1 Pole QO130CP 30 Amp, 1 Pole QO240CP 40 Amp, 2 Pole QO260CP 60 Amp, 2 Pole QO2100CP 100 Amp, 2 Pole
Members get savings and rewards! Sign in or join for FREE

Free & Easy Returns in Store

Homeline miniature circuit breakers are engineered and designed for fast installation and great circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This single pole circuit breaker with plug-in mounting is rated 20 A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This dual function Homeline circuit breaker combines arc fault and ground fault circuit interrupters. This circuit breaker provides overload and short-circuit protection, plus arc fault and ground fault protection in a single device in accordance with the NEC, UL1699 and UL943. The electrical connection is a clamp terminal that will accept two wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. Circuit breaker is consumer packaged.

  • Plug-on design
  • easy to install
  • Cost Efficiency: The cost of a dual-function breaker may be comparable to or slightly more than a standard AFCI breaker, making it a cost-effective solution.

Type
Dual-Function
Voltage Rating
120
Current Rating
20
Operating Frequency
50/60
Number of Phases
1
Number of Poles
1
Interrupt Rating
10
Actuator Type
Magnetic, Thermal
Wire Size
14 to 8, 14 to 10
Terminal Type
Screw Clamp
Number of Spaces
1
Mounting Type
Plug
Dimensions
3.13 in H x 1 in W x 2.98 in D
Operating Temperature
104
