GE Industrial Solutions

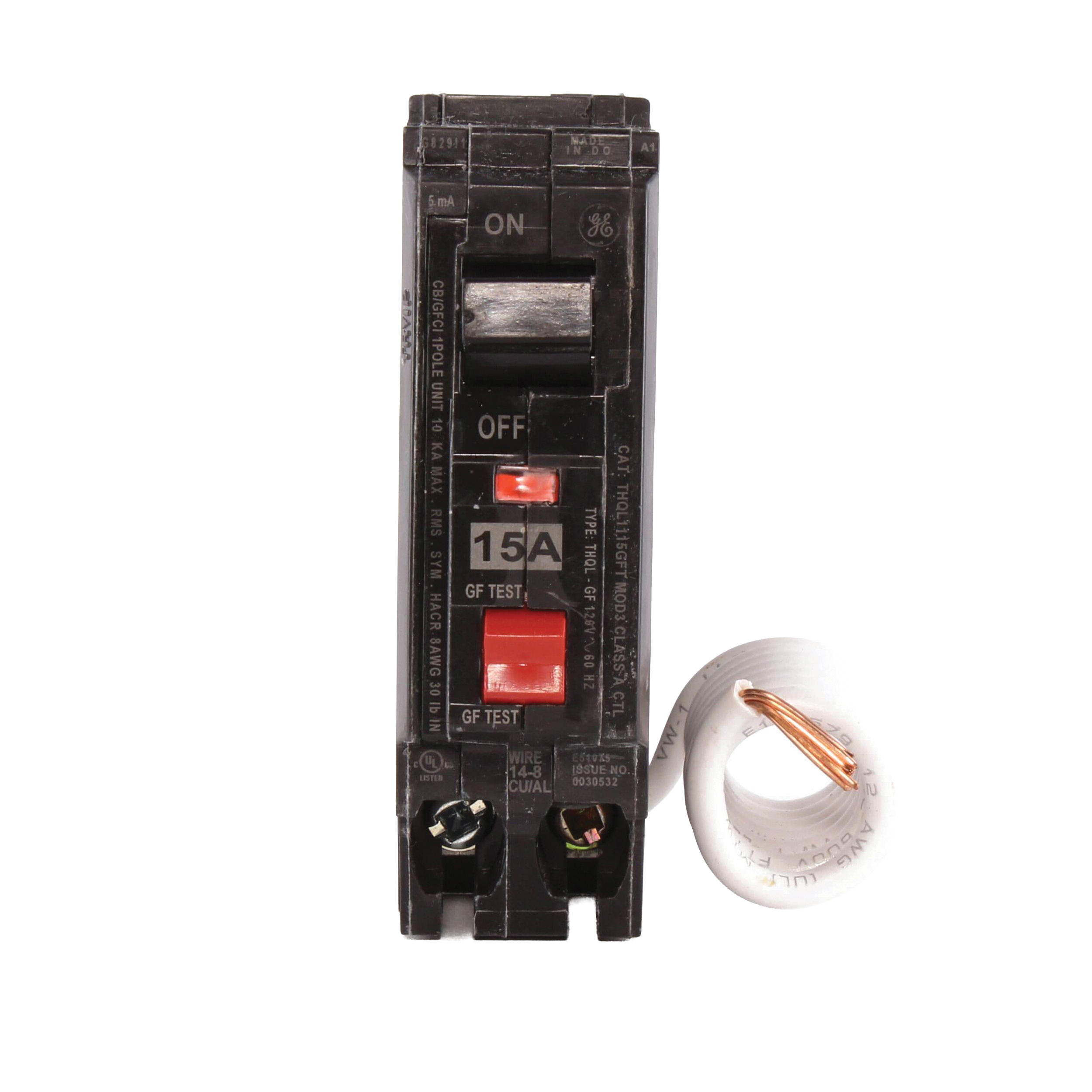

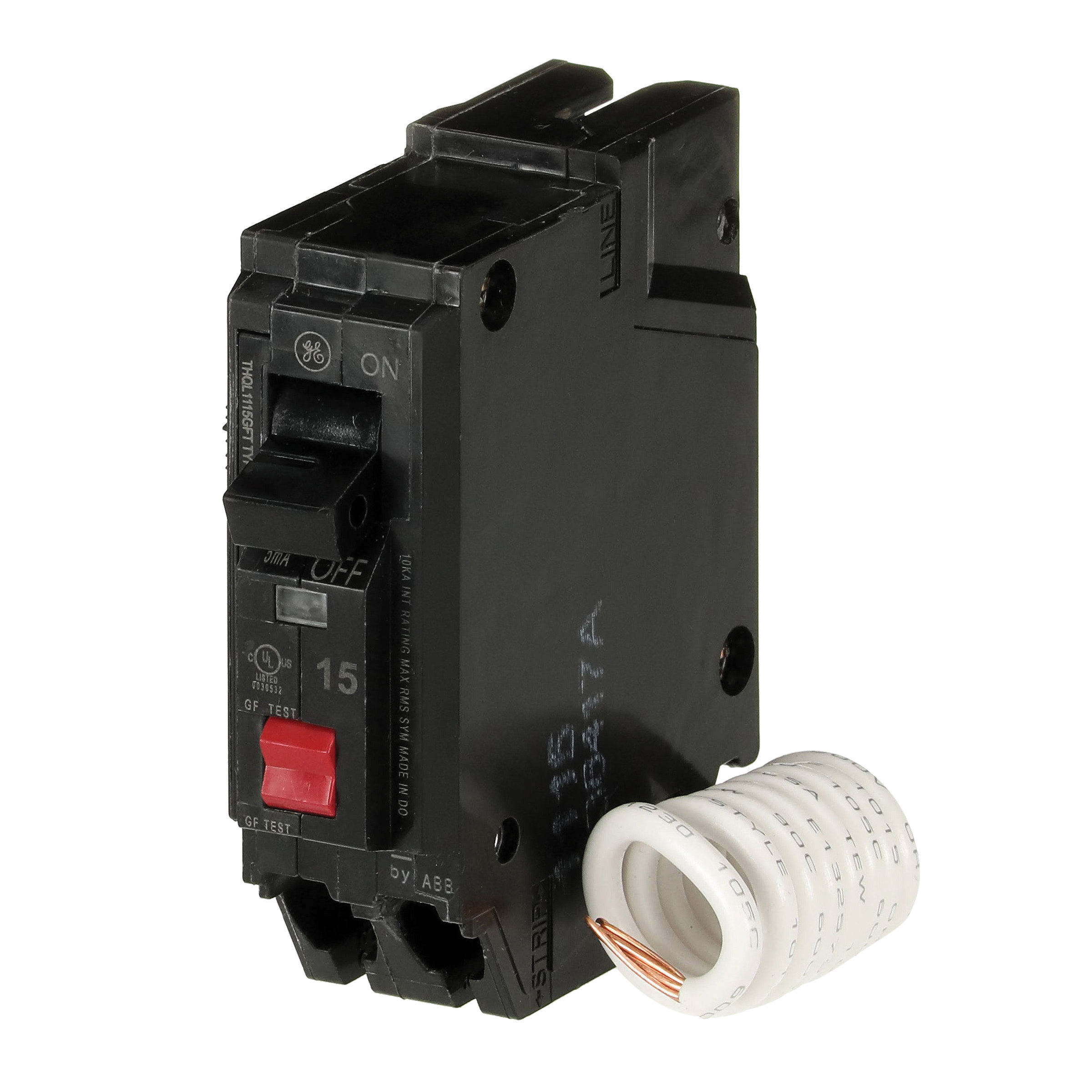

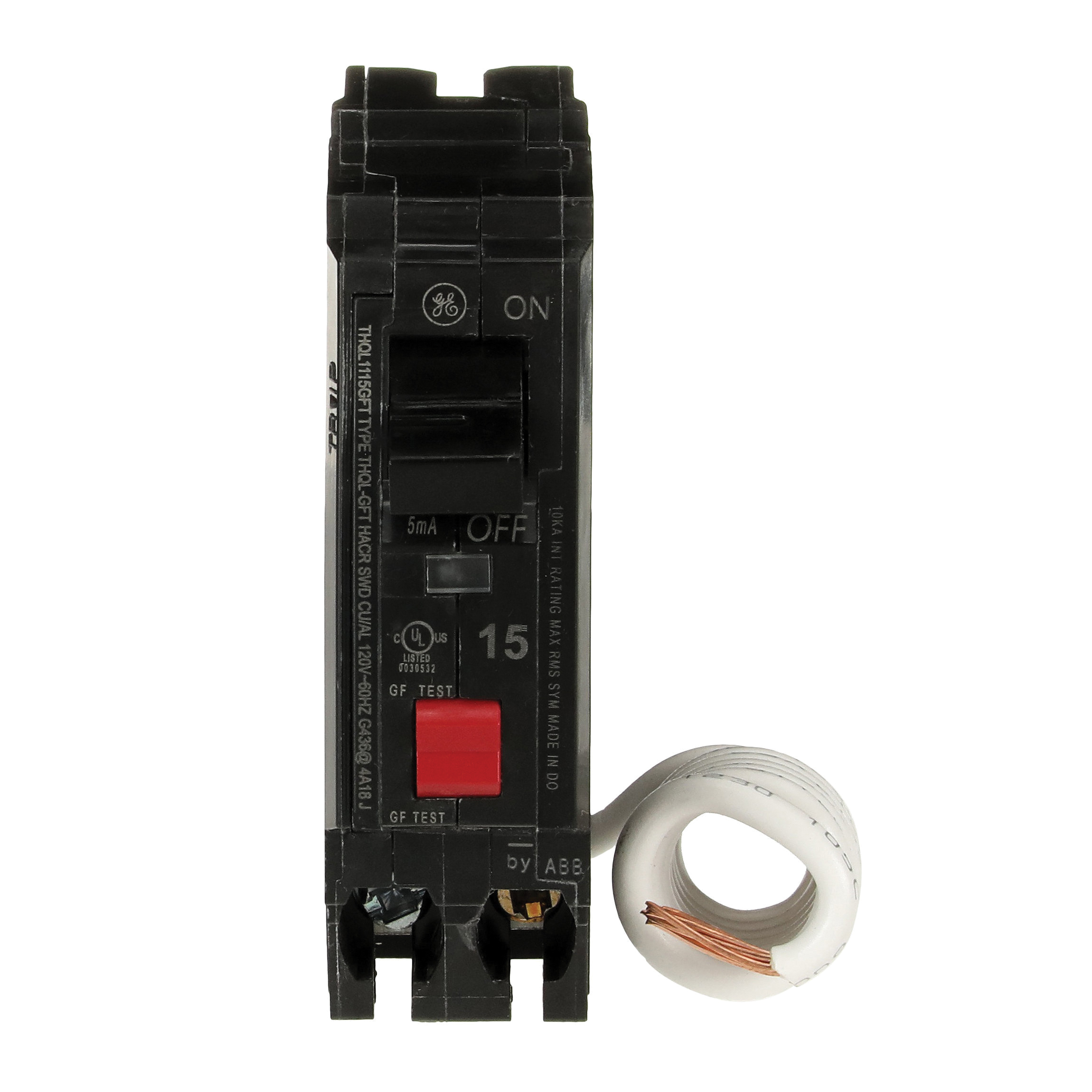

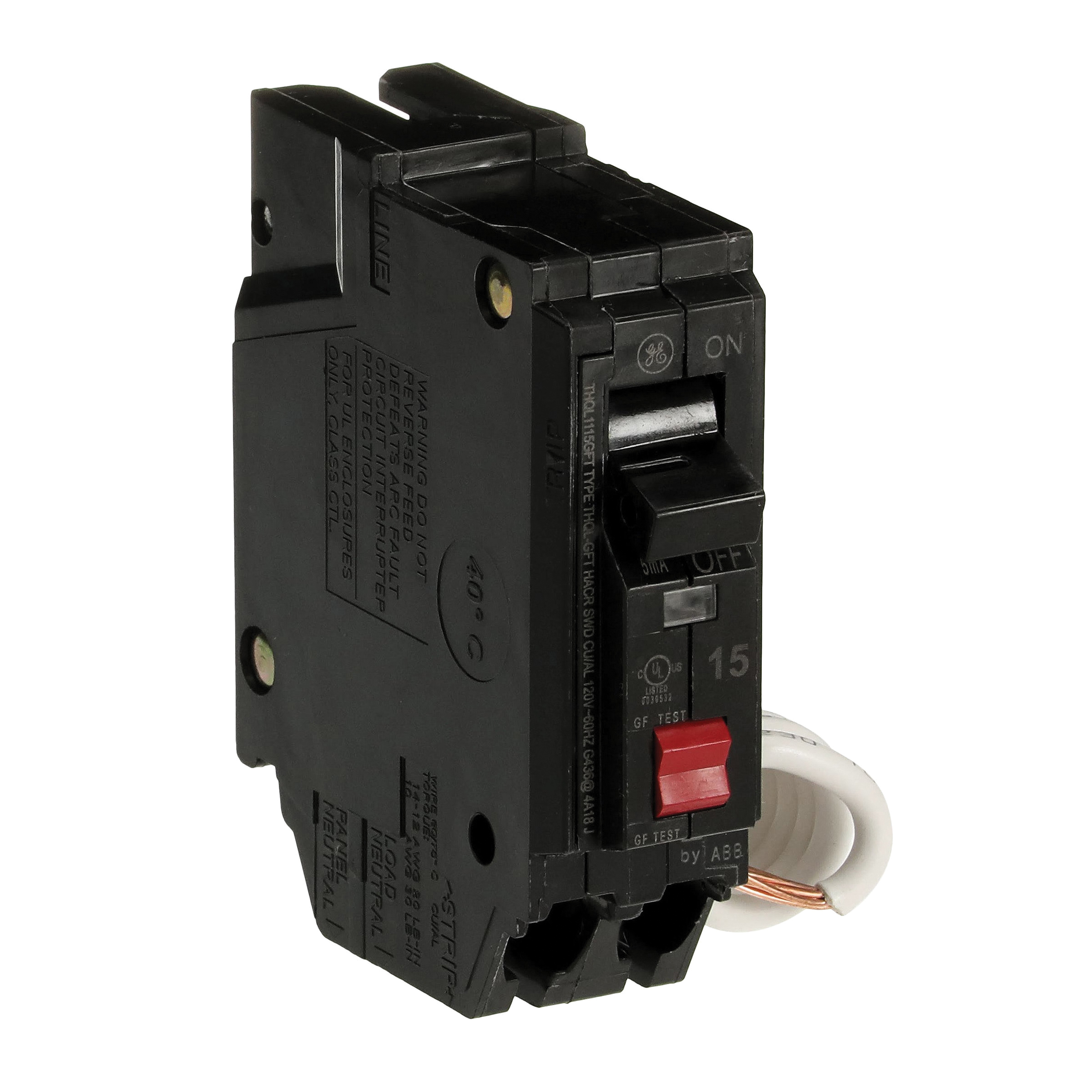

THQL1115GFTP Feeder Circuit Breaker, Thermal Magnetic, 15 Amp, 1 -Pole, 120 V, Plug Mounting

Product SKU #7111578-052303-18
Shop the brand
$75 .29
Ship to Store
6 As soon as 10/01
Delivery
6 As soon as 10/01
Free Pickup at San Marcos
6 SHIP TO STORE Check other stores
GE Industrial Solutions Circuit Breaker Options: THQL1115GFTP, 15 Amp, 1 Pole
Members get savings and rewards! Sign in or join for FREE

Free & Easy Returns in Store

Q line circuit breakers are 1 in W per pole, compact, thermal magnetic devices designed for residential and commercial applications. The QL breakers are plug-in versions of the Q Line used for connection to load centers. All Q Line circuit breakers feature quick-make / quick-break mechanisms, common trip bars and easy-to-spot trip indication to ensure safety and reliability. Q line breakers are available in 1, 2 and three-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

  • Plug-on design
  • easy to install
  • Direct Connection: Connects directly to the neutral bar, eliminating the need for a pigtail connection

Voltage Rating
120
Current Rating
15
Operating Frequency
50/60
Number of Phases
1
Number of Poles
1
Interrupt Rating
10
Frame Type
Q-Line
Actuator Type
Quick-Break, Quick-Make
Trip Type
Non-Interchangeable
Wire Size
14 to 8, 12 to 8
Terminal Type
Screw Clamp
Mounting Type
Plug
Dimensions
3.28 in L x 1 in W x 2.92 in D
Operating Temperature
60 to 75
