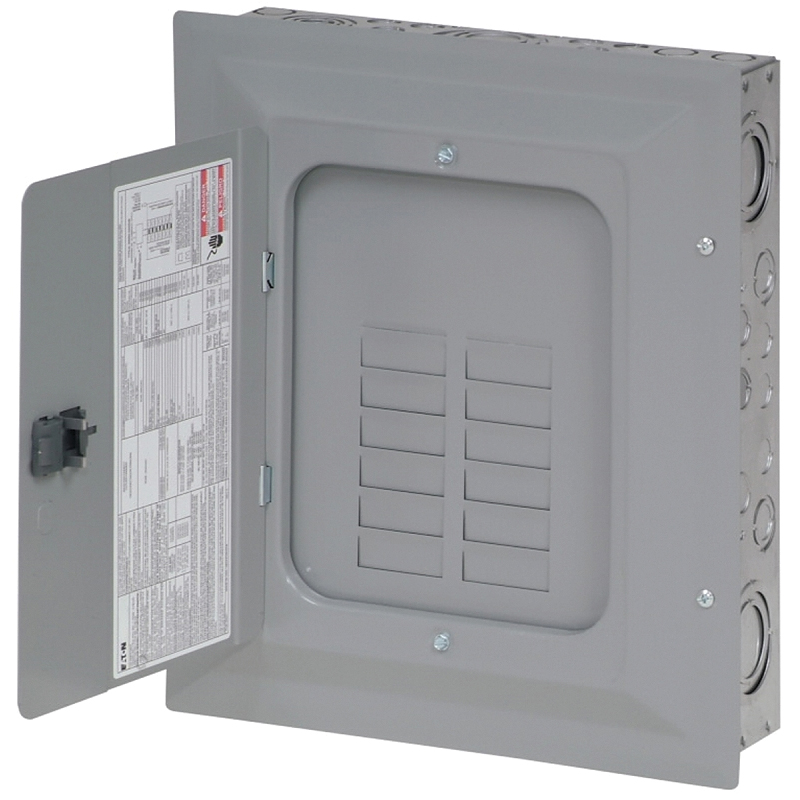

BRP12L125G Load Center, 125 A, 24-Pole, 12-Space, 24-Circuit, Main Lug, Plug-On Neutral, Type BR
Sku: 7119977-052303-18
$59.99
1 Available at
SHIP TO STORE
Main Lug Load Center Options:Eaton BRP12L125G 125A 12Sp 24Cir
Eaton Load Center, 120/240 VAC, 125 A, Number of Phases: 1, Number of Spaces: 12, Number of Poles: 24, Number of Circuits: 24, Breaker/Load Center Type: Main Lug, Plug-On Neutral, Type BR, Interrupt Rating: 10 kAIC, Cable Size: #6 to 2/0 AWG, Wiring Configuration: 3-Wire, Bus Bar Material: Aluminum, Enclosure Type: NEMA 1, Flush, Surface Mounting, Metal, Includes: Cover
- Knockout locations for additional access
- Optimized knockouts easier to remove
- Smooth case edges provides a more professional look and fee
- Top or bottom feed straight-in wiring saves labor and material
- One panel for either top or bottom applications
- 2/0 lug easily removable and can be installed in any location on the neutral bar
- Compact design for easier wiring improved wireway access
- Provides a clean gutter space
- Inboard neutral increases gutter space to allow for the professional installation of conductors
- Excellent conductivity and corrosion resistance
Voltage Rating
120/240
Material
Metal
Current Rating
125
Includes
Cover
Cable Size
#6 to 2/0
Mounting Type
Flush, Surface
Number of Poles
24
Number of Phases
1
Enclosure Type
NEMA 1
Interrupt Rating
10
Number of Spaces
12
Number of Circuits
24
Breaker/Load Center Type
Main Lug, Plug-On Neutral, Type BR
Wiring Configuration
3-Wire
Bus Bar Material
Aluminum
