Eaton

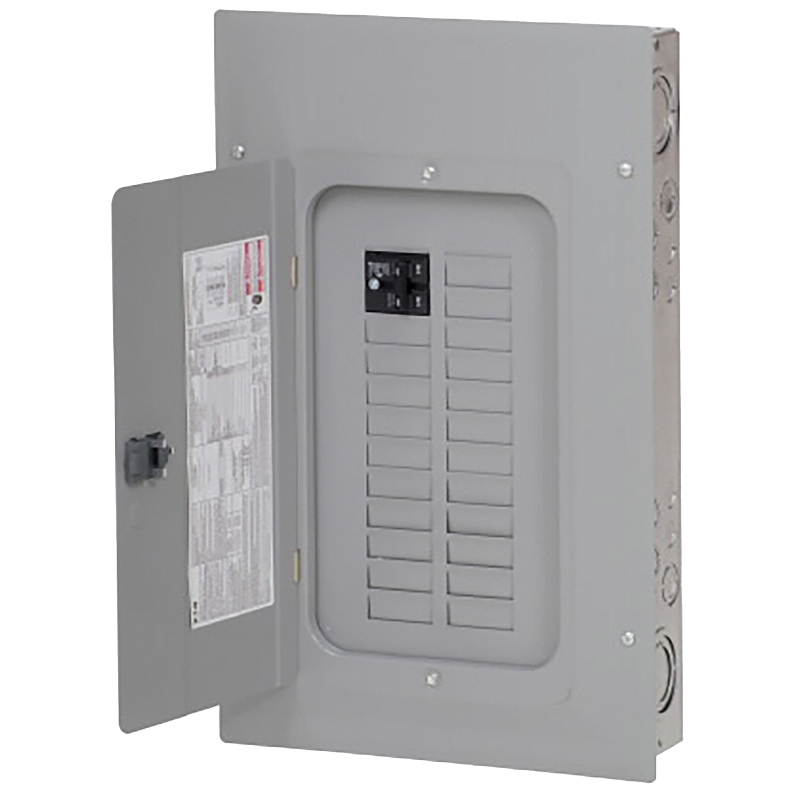

BRP20B100 Load Center, 48-Pole, 100 A, 20-Space, 40-Circuit, Main Breaker, Plug-On Neutral, Type BR

Sku: 7119985-052303-18
$102.52
14 Available at SHIP TO STORE
Main Breaker Load Center Options:Eaton BRP20B100 100A 20Sp 40Cir

Eaton Load Center, 120/240 VAC, 100 A, Number of Phases: 1, Number of Spaces: 20, Number of Poles: 48, Number of Circuits: 40, Breaker/Load Center Type: Main Breaker, Plug-On Neutral, Type BR, Interrupt Rating: 10 kAIC, Cable Size: #4 to 1/0 AWG, Bus Bar Material: Aluminum, Enclosure Type: NEMA 1, Flush, Surface Mounting, Includes: Cover

  • Knockout locations for additional access
  • Optimized knockouts easier to remove
  • Smooth case edges provides a more professional look and fee
  • Top or bottom feed straight-in wiring saves labor and material
  • One panel for either top or bottom applications
  • 2/0 lug easily removable and can be installed in any location on the neutral bar
  • Compact design for easier wiring improved wireway access

Voltage Rating
120/240
Current Rating
100
Number of Phases
1
Number of Spaces
20
Number of Poles
48
Number of Circuits
40
Breaker/Load Center Type
Main Breaker, Plug-On Neutral, Type BR
Interrupt Rating
10
Cable Size
#4 to 1/0
Bus Bar Material
Aluminum
Enclosure Type
NEMA 1
Mounting Type
Flush, Surface
Includes
Cover
