16-103 Mortising Bit, 23/32 in Dia Cutter, 1-3/4 in OAL, 1/4 in Dia Shank, 2-Cutter, Carbide
Sku: 7545973-052303-32
$31.08
18 Available at
SHIP TO STORE
Estimated Arrival On: 02/19/2026

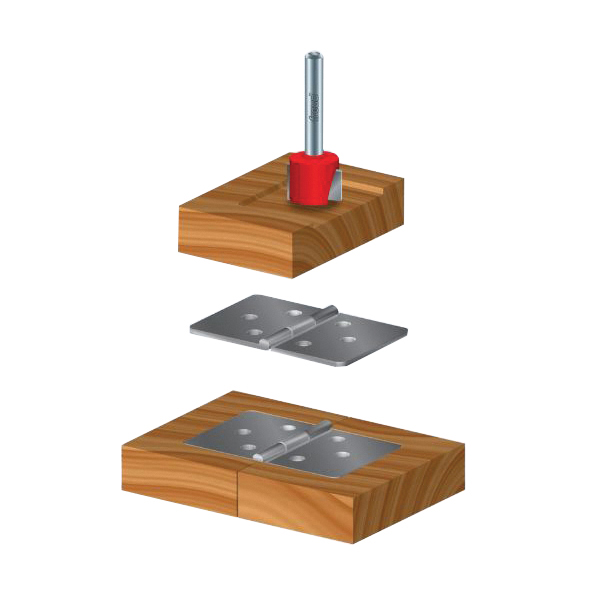

Freud mortising bits are designed to deliver clean, precise, splinter-free mortises in plywood, veneer, solid wood or almost any composite material. Most of these bits feature a down shear design that helps eliminate splintering by pushing wood fibers down during the cut. Ideal for mortising hinges and hardware or cutting grooves and dadoes. These bits are designed with deep center gullets for maximum material removal without chip loading. Use in any CNC or portable router.
- Down shear design on most bits for clean top surfaces
- Deep center gullets for fast chip removal
Cutter Diameter
23/32
Number of Cutters
2
Cutting Depth
1/2
Shank Diameter
1/4
Material
Carbide
Finish
Perma-Shield
Overall Length
1-3/4
Applicable Materials
Composites, Hardwood, Softwood and Veneered Plywood
Suitable for
CNC, Hand Held and Table Mounted Portable Routers
