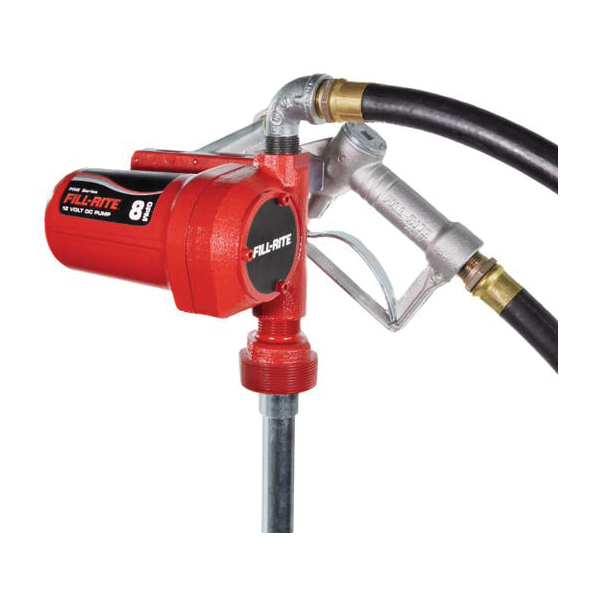

FR8 Series FR8 Fuel Transfer Pump with Nozzle, Motor: 1/12 hp, 12 VDC, 15 A, 2600 rpm, 6 ft L Suction Tube

Name: FR8 Series FR8 Fuel Transfer Pump with Nozzle, Motor: 1/12 hp, 12 VDC, 15 A, 2600 rpm, 6 ft L Suction Tube
Brand: Fill-Rite
SKU: 7563794-052303-20

Sku: 7563794-052303-20

$369.12

1 Available at SHIP TO STORE

Estimated Arrival On: 03/15/2026

You work through all kinds of conditions, so why shouldn't your fuel transfer pump? for over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materials, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.

True 8 gpm performance delivers the same performance as gas stations pumps, making it ideal for filling equipment with 2 to 25 gal fuel tanks
Proven reliability - Fill-Rite's reliable sliding vane technology maintains ideal clearances and consistent performance over the entire life of the pump
Hassle-free - refueling with the FR8 eliminates the hassle, spills and wasted time caused by clunky and inefficient gas cans
Ultra lightweight - under 13 lb, the FR8's compact and lightweight design reduces stress on your transfer tank
Elite endurance - the FR8 has a 15 min on, 15 min off-duty cycle, so you can pump twice as much as the competition in 45 min
Peace of mind - the FR8's thermally protected motor shuts down if it gets too hot, so you never have to worry about it over heating
Long-lasting durability heavy-duty, cast iron construction outlasts daily wear and tear in harsh weather
Theft prevention - lockable power switch deters theft when leaving your pump unattended at the trailhead or on the side of the road (Master Lock® #140DLH recommended)
Fluid compatibility - designed for daily use with gasoline, diesel, kerosene, biodiesel blends up to B20 and ethanol blends up to E10

Flow Rate

Inlet Connection Size

Inlet Type

FNPT

Outlet Connection Size

3/4

Outlet Type

FNPT

Designated Fluid

Diesel, Gasoline, Kerosene, Biodiesel

Nozzle Type

Manual

Motor Specifications

1/12 hp, 12 VDC, 15 A, 2600 rpm

Suction Tube Length

Length

8.9

Material

Iron

Includes

Static Wire, Ground Wire, 14 ga 15 ft Cable, 12 to 36 in Steel 3-Piece Suction Pipe, 3/4 in x 12 ft Hose with Static Ground Wire, 3/4 in Cast Aluminum Manual Nozzle, 3/4 in Street Elbow, (2) Wire Nuts and PTFE Tape Roll
