1200 Series FR1210HA1F Fuel Transfer Pump, Motor: 12 V Motor, 8 ft L Suction Tube, 3/4 in Outlet, 15 gpm
Sku: 7563802-052303-20
CALL FOR PRICE
0 Available at
SHIP TO STORE
Estimated Arrival On: 03/15/2026

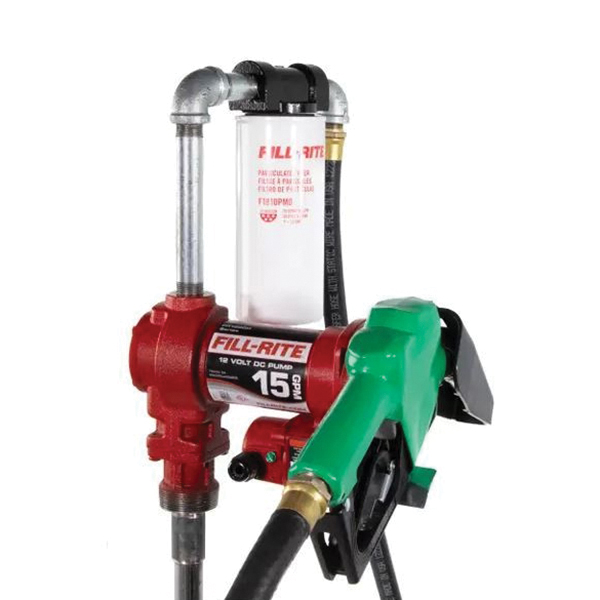

Fill-Rite's 1200 Series of heavy-duty fuel transfer pumps feature simple installation with a rotatable junction box and are built to last with cast iron construction. The FR1210HA1F model is a 12 VDC, 15 gpm, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a hose, nozzle, suction pipe, filter head kit, particulate filter and installation components.
- Heavy-duty, cast iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
- Fill-Rite's trusted rotary vane pump technology delivers 15 gpm, ideal for filling equipment with fuel tanks from 15 to 60 gal

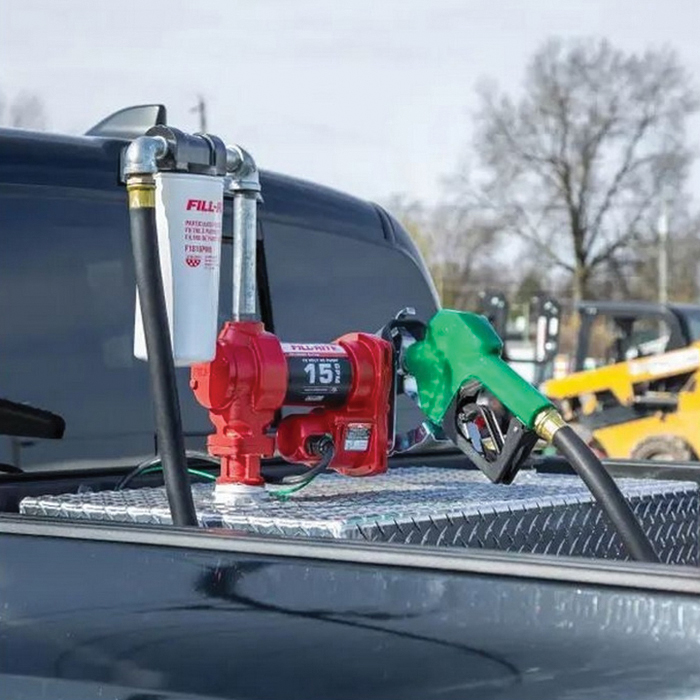

- Powered by a 12V motor and equipped with a 2 in bung-mount, this pump is ideal for wiring to 12 V batteries and installing onto transfer tanks in truck beds
- Designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene and mineral spirits
- Adjustable electrical junction box rotates 180 deg for easier wiring and more flexible installations in tight spaces
- Thermally-protected motor prevents overheating, ensuring your pump performs for years worry-free
- Built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment
- On-Off switch lever features a robust metal stopping arm, preventing premature failure from repeated use
- We stand behind our product with an industry-leading limited lifetime warranty, protecting your investment
Flow Rate
15
Inlet Connection Size
1
Inlet Type
FNPT
Outlet Connection Size
3/4
Outlet Type
FNPT
Pressure Rating
16
Designated Fluid
Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits
Nozzle Type
Automatic Diesel
Motor Specifications
12 V Motor
Suction Tube Length
8
Length
10.6
Material
Cast Iron
Includes
Auto Diesel Nozzle, Cable Gland, Discharge Hose, Elbow, Fastener, Filter, Filter Head, 5 ft Ground Wire, Locking Nut, Nozzle Boot, On/Off Switch, 7 ft Pipe Nipple, (2) 2-1/2 in Pipe Nipples, Power Cable, Pump, Street Elbow, Suction Pipe, (2) Thread Tapes and (2) Wire Nuts
