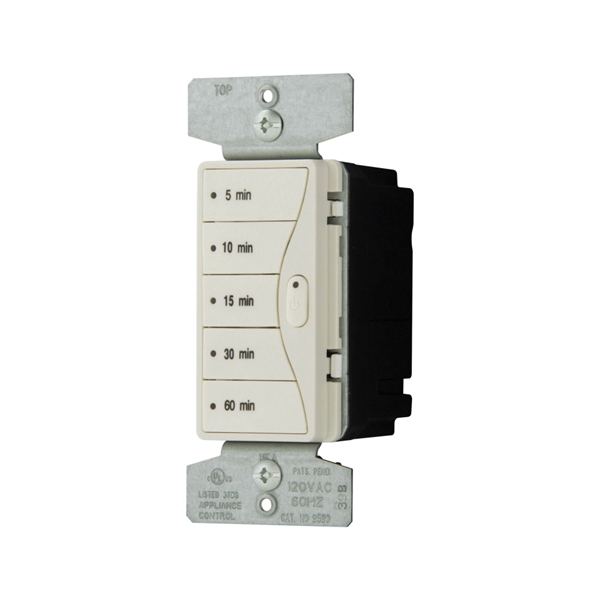

PT18M-LA-K Minute Timer, 15 A, 120 V, 1800 W, 5 to 60 min Time Setting, Light Almond
Sku: 8024036-052303-18
$40.06 / Card
1 Available at
SHIP TO STORE
Accell timers are programmable hr or min time delay in 2 modes for preset groups or down to 1 min increments. Accell timers match the aesthetics of Accell dimmers and are available in 7 colors. Rated for up to 1800 W loads ac at 120 V and operates incandescent/halogen, magnetic low-voltage, electronic low-voltage, fluorescent, compact fluorescent and LED lighting load types. Ideal for both new construction and retrofit with no neutral required for installation.
- Manual over ride when timer functionality isn't needed
- Five preset time intervals, easily programmable to alternate time intervals to suit your needs
- Horsepower-rated for 1/4 hp motor loads
- LED indication of time interval selected and countdown
- Automatically turns lights/fan On/Off after preset time
- Ideal for both new construction and retrofit with no neutral required for installation
Type
Programmable
Voltage Rating
120
Current Rating
15
Wattage Rating
1800
Frequency Rating
60
HP Rating
1/4
Number of Poles
1
Time Setting
5 to 60
Installation Type
Box, Wall
Temperature Rating
0 to 40
Material
Polycarbonate
Color
Light Almond
Finish
Gloss
Width
1.39
Height
3.81
Depth
1.8
Suitable for
Compact Fluorescent, Electronic Low-Voltage, Fluorescent, Incandescent/ Halogen, Led and Magnetic Low-Voltage Lights
