Milwaukee

M12 Series 3632-21 3-Plane Laser Kit, 165 ft, +/- 1/8 in at 33 ft Accuracy, 3-Beam, Green Laser

Sku: 7530413-052303-31
$677.51
1 Available at SHIP TO STORE
Estimated Arrival On: 03/21/2026

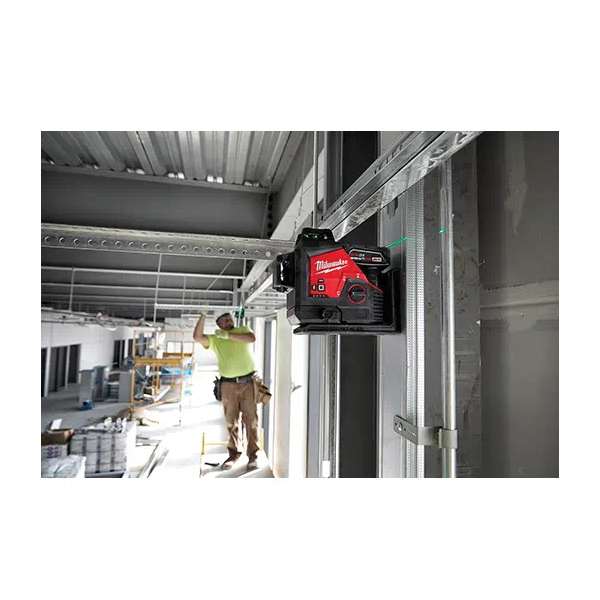

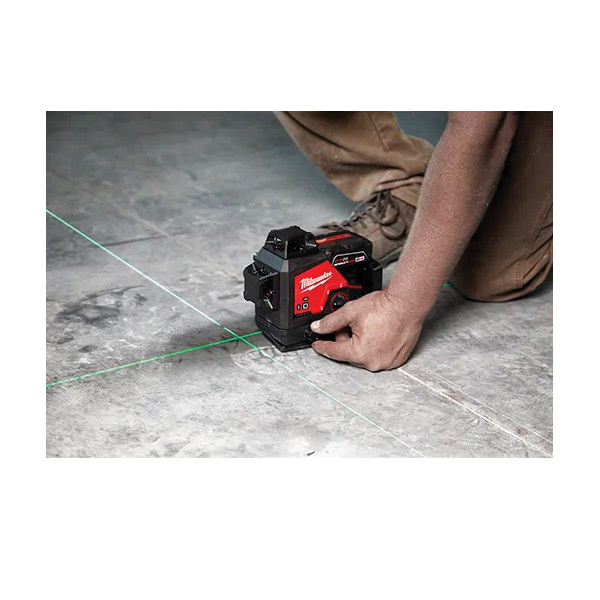

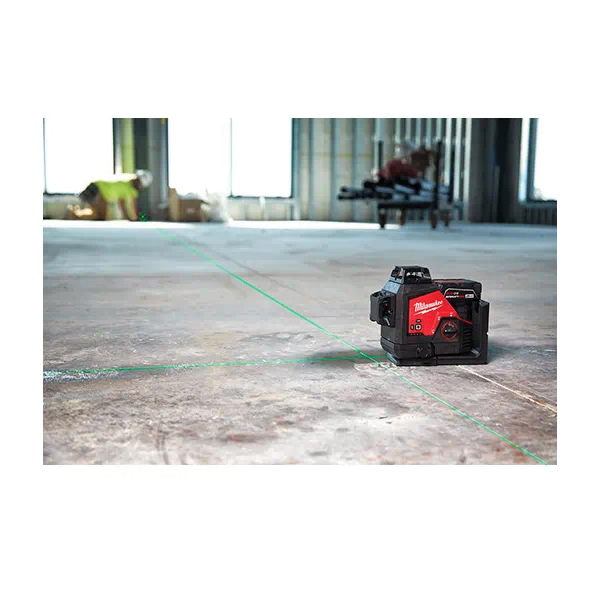

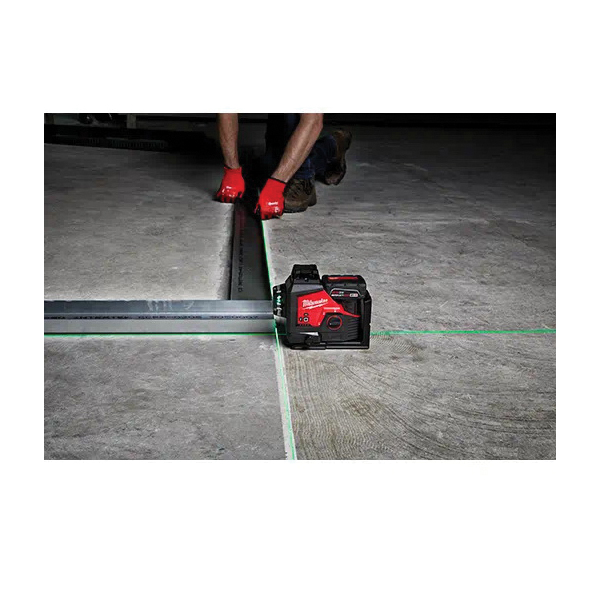

Our M12™ Green 360 deg 3-plane laser kit provides you with all day runtime and best visibility in its class. You'll get 15+ hr of continuous runtime when paired with an M12™ REDLITHIUM™ 4.0 XC battery for ultimate productivity. The high-intensity green laser offers you superior visibility up to 250 ft (Dia) for long range applications. The three 360 deg planes include horizontal and two vertical lines for fast and easy alignment, leveling, squaring and transfers allowing you to easily layout large spaces with one tool. The integrated bracket features a micro control and pivots on plumb point for easy and fast alignment. The amplified rare earth magnets provide a strong hold and will not slide on steel studs, while an integrated hang hole makes setup easy and efficient in any environment. As a part of the industry leading Milwaukee® M12™ system, this 360 deg laser level is compatible with all M12™ batteries.

  • All day runtime 15+ hr
  • Micro control pivots on point
  • 165 ft range with detector (radius)
  • Amplified rare earth magnets will not slide on steel studs
  • Brightest green laser optimized for distance
  • 125 ft working range (radius)
  • 1 m impact resistance
  • +/- 4 deg tilt self-leveling

Measuring Range
165
Accuracy
+/- 1/8 in at 33 ft
Leveling Type
Self
Laser Projection Type
Line, Point
Number of Beams
3
Laser Color
Green
Battery Type
Lithium-Ion
Battery Capacity
15
Battery Voltage
12
IP Rating
IP54
Mounting Type
Tripod, Wall
Dimensions
7.8 in L x 4.1 in W x 6.5 in H
Includes
(1) 48-11-2440 M12 REDLITHIUM XC 4.0 Extended Capacity Battery Pack, (1) 48-59-2401 M12 Lithium-Ion Battery Charger, (1) 48-35-1111 Responsive Laser Alignment Target and (1) Carrying Case
